T3 CERTIFIED HIGH-AMBIENT CHILLER FOR EXTREME CLIMATES.
40HP Industrial Water Chiller (APT-BLAF40N)
- ✅ 100.5 kW Massive Cooling Capacity (T3 Rated)
- ✅ 52°C (125.6°F) Extreme Ambient Resilience
- ✅ Shell & Tube Heavy-Duty Evaporator
- ✅ Dual-Circuit Twin Scroll Compressor System
- ✅ R134a High-Temperature Stable Refrigerant
- ✅ IP54 Dust & Sandstorm Proof Housing
1. Product Overview

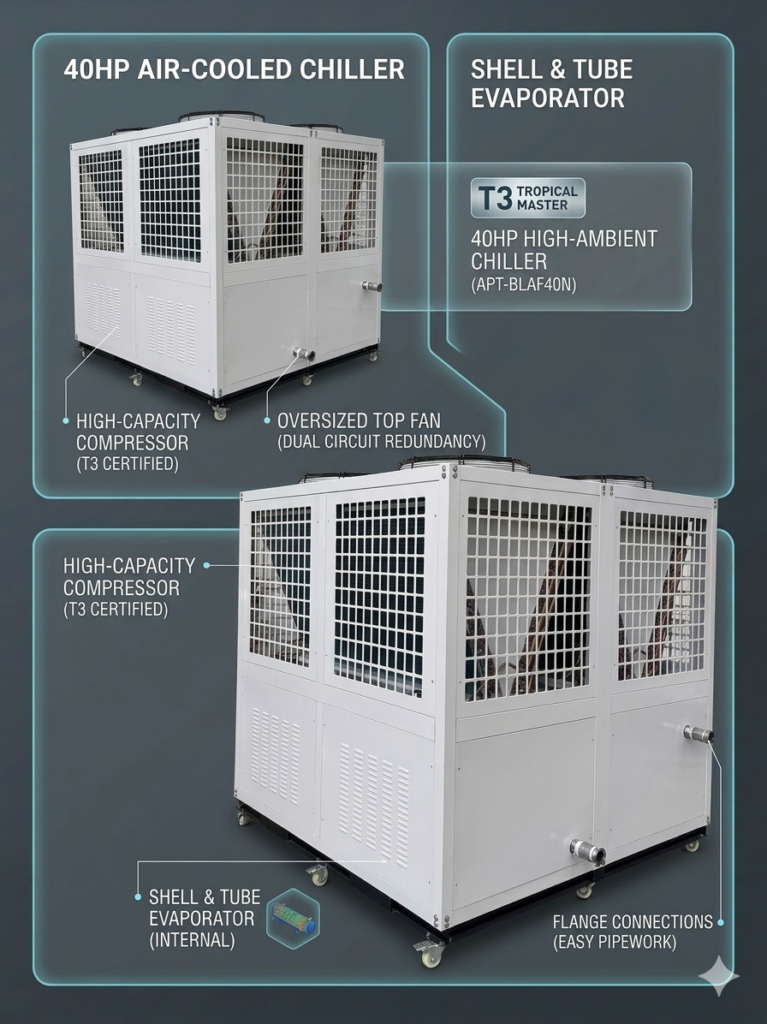

APT-BLAF40N: The 40HP Cooling Beast for T3 Extremes
Engineered by APT Group, the APT-BLAF40N is a heavy-duty 40HP industrial water chiller specifically built to conquer the intense heat of the Middle East and tropical regions. Certified for T3 working conditions, this robust unit delivers a massive 100.5 kW of cooling power even when ambient temperatures hit a blistering 52°C (125.6°F). Whether for plastic injection, chemical processing, or large-scale manufacturing, the BLAF40N ensures your production never stops due to high-pressure trips.
2. Core Advantages
- T3 Condition Mastery: Optimized refrigeration cycle prevents system shutdowns during peak summer heat.
- Extreme Durability: Features an oversized, reinforced cabinet to withstand desert sandstorms and high UV radiation.
- Operational Security: Built with industrial-grade components and redundant safety protocols for 24/7 mission-critical cooling.
3. Key Technical Features
- High-Efficiency Shell & Tube Evaporator: Superior to plate heat exchangers; it handles fluctuating water quality with ease and allows for manual internal cleaning to maintain peak efficiency.
- Dual-Circuit Reliability: Equipped with two independent scroll compressors, providing 50%–100% capacity modulation and an essential backup if one circuit requires service.
- Eco-Friendly R134a Refrigerant: Specifically chosen for its stability in high-ambient environments, ensuring lower discharge pressures and longer compressor life.
TECHNICAL SPECIFICATIONS (T3 SERIES)
| Main Parameter | Specifications / Details |
|---|---|
| Model Number | APT-BLAF40N |
| Nominal Cooling Capacity (T3) | 100.5 kW / 28.6 Tons |
| Max Ambient Temperature | 52°C (125.6°F) |
| Compressor Type | Hermetic Scroll (High-EER) |
| Number of Compressors | 2 Units (Dual-Circuit) |
| Refrigerant Type | R134a / R407C (Optional) |
| Evaporator Type | Shell and Tube (High-Flow) |
| Condenser Type | Oversized Fin-Tube with Anti-Corrosion Coating |
| Cooling Fan | 4 x High-Volume Axial Fans |
| Power Supply | 380V-415V / 3Ph / 50Hz (Customizable) |
| Safety Protection | High/Low Pressure, Phase Loss, Anti-Freeze, Overload |
Component-Level Optimization: Why APT Outperforms in the Heat
Engineering for the 52°C Frontier: The T3 Thermal Mastery
HOW WE CONQUER THE HEAT
T3-Rated Compressors
Certified for high-ambient operation, featuring a wider operating envelope to prevent high-pressure trips at 52°C.
Oversized Condenser
35% larger heat exchange surface with anti-corrosion coating to maintain thermal efficiency in desert climates.
Electronic Expansion Valves
Precise PID control of refrigerant flow, ensuring optimal superheat and compressor safety during peak thermal loads.

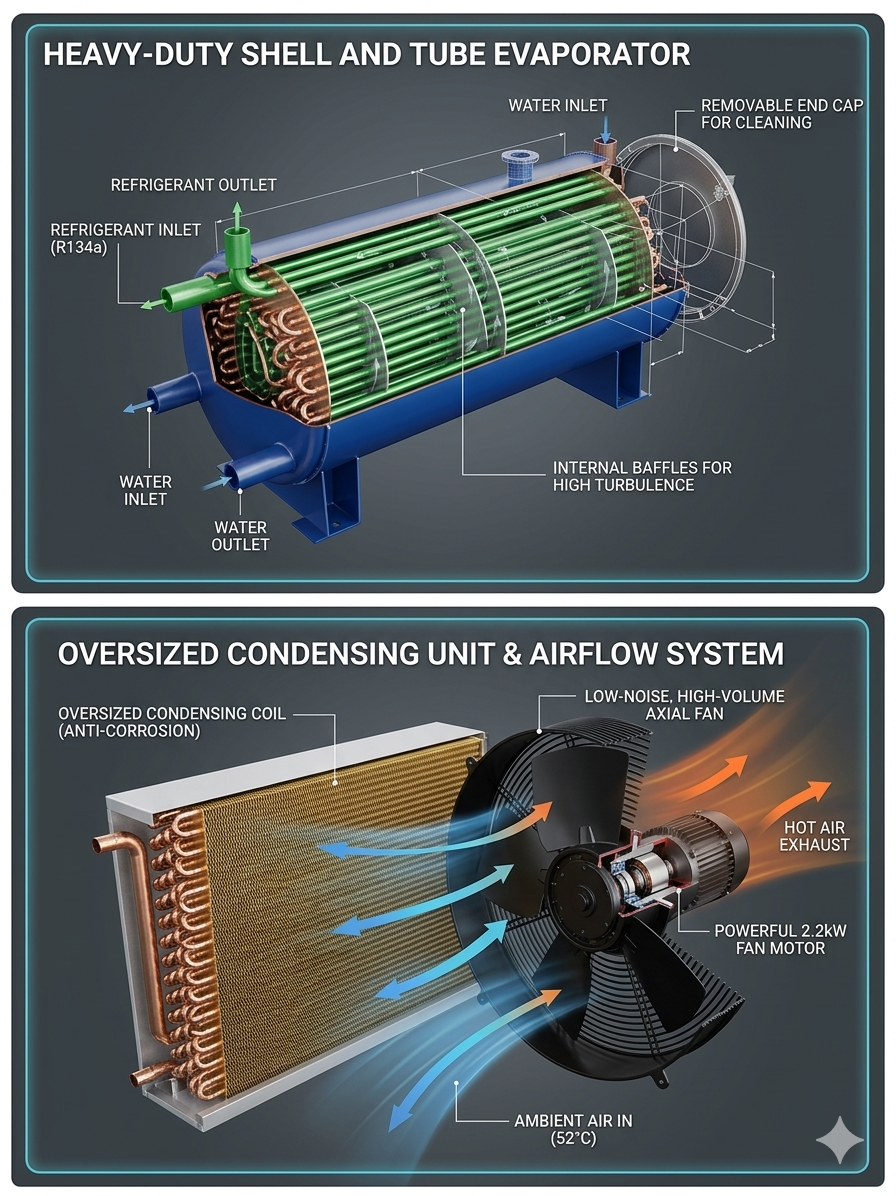

Shell & Tube Technology
Heavy-duty design that handles high-mineral water and allows for manual cleaning, extending lifespan to 15+ years.
Comprehensive Safety Protections
High/Low Pressure Protection
Monitors refrigerant pressure in real-time, preventing compressor damage.
Compressor Overload
Prevents compressor burnout caused by excessive load or voltage.
Phase Sequence Protection
Ensures the correct rotation of the pump and compressor.
Anti-Freeze Protection
Prevents ice formation on the heat exchanger when oil temp is too low.
Oil Pump Overload
Protects the gear pump from damage due to oil blockages.
Flow Detection (Optional)
Triggers alarm if oil flow rate drops below safe operating levels.
