Electroplating Chiller for Plating Bath and Anodizing Cooling
APT electroplating chillers and anodizing chillers provide stable bath temperature control for electroplating tanks, anodizing tanks, electrolyte cooling, metal finishing, and surface treatment lines. Each cooling system can be configured according to bath volume, tank dimensions, bath chemistry, target temperature, heat load, heat exchanger material, pump flow, pump pressure, ambient conditions, voltage, and installation environment.
What Matters Most in Electroplating Cooling?
An electroplating chiller should be selected around bath volume, tank dimensions, bath chemistry, target bath temperature, electrochemical heat load, production schedule, pump flow, heat exchanger material, direct or secondary loop cooling, corrosion risk, ambient temperature, and installation layout. Stable electrolyte temperature helps support coating thickness, brightness, adhesion, bath life, and surface consistency.
The correct plating bath cooling system is not selected by horsepower alone. APT reviews the plating process, anodizing process, chemical compatibility, titanium or stainless heat exchanger requirement, water quality, acid mist environment, voltage, and whether an air-cooled, water-cooled, heating and cooling, or custom process cooling configuration is more suitable.
Key Electroplating Chiller Parameters
Electroplating bath, anodizing bath, chemical tank, secondary cooling loop, surface treatment line.
Closed-loop chilled water cooling, direct heat exchanger cooling, or indirect secondary loop by review.
Small tank systems to 40HP+ and larger custom systems by heat load review.
Common 5–35°C chiller outlet range; bath temperature set by process requirement.
Titanium, stainless steel, plate, shell-and-tube, or secondary loop options by chemistry.
Configured according to tank coil, plate heat exchanger, pipe length, and pressure loss.
Air-cooled, water-cooled, heating and cooling, or custom corrosion-resistant system.
Digital controller, PLC, alarm output, flow protection, remote signal optional.
What Is an Electroplating Chiller?
An electroplating chiller is an industrial process cooling system used to remove heat from plating baths, anodizing baths, electrolyte tanks, and surface treatment process loops. By maintaining stable bath temperature through a suitable heat exchanger or secondary cooling loop, the chiller helps control coating quality, chemical stability, and continuous production reliability.
Bath Temperature Control
Maintains the plating bath or anodizing bath within the required process temperature range.
Coating Quality Stability
Supports coating thickness, brightness, adhesion, hardness, and surface consistency.
Corrosion-Compatible Heat Exchange
Heat exchanger material should be selected according to bath chemistry and corrosion risk.
Continuous Surface Treatment Production
Supports stable temperature during long shifts and high-duty surface treatment operation.
Electroplating and Anodizing Cooling Requirements
Electroplating and anodizing processes can be affected by electrolyte temperature, bath chemistry, current density, tank volume, heat exchanger material, acid mist, and continuous operation. The cooling system should be selected according to real process load and chemical compatibility.
Bath Temperature Stability
Stable temperature helps keep the electrochemical process within the required operating window.
Coating Thickness and Brightness Control
Temperature variation can affect deposition rate, brightness, adhesion, and final surface appearance.
Chemical Compatibility
Bath chemistry should be reviewed before selecting heat exchanger material and cooling method.
Titanium Heat Exchanger or Secondary Loop
Corrosive baths may require titanium heat exchangers or indirect secondary cooling loops.
Acid Mist and Corrosion Protection
Surface treatment workshops may need protected electrical cabinets and corrosion-resistant design review.
Continuous Production Cooling
Long plating cycles require stable heat removal, pump reliability, and protection logic.
Cooling Points in Plating and Surface Treatment Lines
Plating and anodizing cooling may involve direct bath heat exchange, secondary process water loops, chemical tank cooling, and centralized cooling for multiple tanks. The final chiller configuration should be reviewed according to bath chemistry, heat load, and material compatibility.
Electroplating Bath Cooling
Controls electrolyte temperature for stable deposition and surface finish.
Aluminum Anodizing Bath Cooling
Supports anodizing film quality, hardness, and process consistency.
Chemical Tank Cooling
Controls chemical tank temperature where heat removal is required by process conditions.
Secondary Cooling Loop
Uses an indirect clean-water loop to reduce direct contact between chiller and aggressive chemistry.
Centralized Multi-Tank Cooling
Supports multiple tanks or production lines with centralized chiller and distribution design.
Recommended Chiller Selection Matrix for Electroplating Cooling
Use this matrix as a preliminary guide before confirming bath volume, process heat load, chemistry, target temperature, heat exchanger material, and installation environment.
| Plating Cooling Requirement | Recommended Chiller Direction | Best For | Engineering Review | Next Step |
|---|---|---|---|---|
| Small plating tank or lab line | Compact air-cooled process chiller | Small tanks, lab plating, limited space, low to medium heat load | Bath volume, target temperature, pump flow, chemical compatibility | View Air-Cooled Chillers → |
| Medium plating or surface treatment line | Industrial air-cooled chiller | Standalone plating tanks, no cooling tower, practical installation | Heat load, ambient temperature, airflow, tank coil or exchanger | View Air-Cooled Chillers → |
| Large continuous plating or anodizing line | Water-cooled industrial chiller | High heat load, indoor plant room, continuous production, centralized utilities | Condenser water, cooling tower, water quality, working hours | View Water-Cooled Chillers → |
| Corrosive bath or aggressive chemistry | Custom chiller with titanium heat exchanger or secondary loop | Acidic bath, anodizing electrolyte, hard chrome, special chemistry | Chemical composition, material compatibility, corrosion risk, maintenance | View Parts & Heat Exchangers → |
| Heating and cooling / high ambient / multi-tank project | Custom process cooling system | Chemical tanks requiring heating and cooling, T3 ambient, multiple tanks, PLC | Tank count, heat load, redundancy, voltage, control logic | Request Custom Design → |
Electroplating, Hard Chrome, Nickel, Zinc, Anodizing, and Surface Treatment Cooling Comparison
Different surface treatment processes may have different heat load, chemistry compatibility, temperature stability, and heat exchanger requirements.
| Process | Typical Cooling Purpose | Chiller Selection Focus | Common Options |
|---|---|---|---|
| General Electroplating | Maintain electrolyte temperature for stable deposition | Bath volume, process heat load, temperature window, water quality | Air-cooled or water-cooled chiller, tank coil, filter, alarm output |
| Hard Chrome Plating | Remove significant heat from high-current plating baths | High heat load, chemical compatibility, continuous duty, corrosion protection | Water-cooled chiller, titanium heat exchanger, secondary loop |
| Nickel Plating | Support brightness, adhesion, bath stability, and repeatable finish | Temperature stability, bath chemistry, flow, material compatibility | Air-cooled or water-cooled chiller, stainless or titanium review |
| Zinc Plating | Control bath temperature according to bath type and production rhythm | Tank size, bath chemistry, process schedule, installation space | Compact or industrial air-cooled chiller, secondary loop by review |
| Aluminum Anodizing | Control electrolyte temperature for anodizing film quality and hardness | Electrolyte temperature, acid compatibility, heat exchanger material | Titanium exchanger, water-cooled chiller, custom process cooling |
| Metal Finishing / Surface Treatment | Cooling for chemical tanks, rinse process, or surface treatment line | Process fluid, target temperature, corrosion risk, centralized layout | Custom chiller, secondary loop, protected electrical cabinet |
Heat Exchanger Material and Cooling Loop Selection Matrix
Electroplating and anodizing cooling should be reviewed carefully because heat exchanger material and cooling loop design affect corrosion resistance, maintenance, and long-term reliability.
| Process Fluid / Cooling Method | Common Engineering Direction | When to Consider | Notes |
|---|---|---|---|
| Clean water secondary loop | Stainless steel plate or shell-and-tube heat exchanger | Chiller cools clean water, clean water removes heat from process exchanger | Reduces direct contact between chiller and aggressive chemistry |
| Mild process water | Stainless steel heat exchanger by review | Low-corrosion process water with controlled quality | Confirm chloride, pH, additives, and water quality |
| Acidic electroplating bath | Titanium heat exchanger or titanium coil by review | Corrosive plating bath or anodizing electrolyte | Chemistry confirmation is required before final material selection |
| Highly aggressive chemistry | Indirect secondary cooling loop | When direct chiller contact is not suitable | Safer maintenance and better equipment protection |
| Heating and cooling tank | Custom temperature control unit | Chemical tank requires both heat-up and cooling control | PLC and staged control may be required |
Typical Electroplating Chiller Specification Range
Final specifications should be confirmed according to bath volume, process heat load, target temperature, chemical compatibility, flow rate, pump pressure, ambient temperature, voltage, and control requirements.
| Cooling Capacity | Small tank systems to 40HP+ and larger custom systems according to bath volume and heat load |
| Cooling Medium | Water, glycol water, clean secondary loop water, or project-specific fluid by review |
| Outlet Water Temperature | Common 5–35°C chiller outlet range; bath temperature set according to process |
| Temperature Stability | ±1°C common option, tighter stability by engineering review |
| Heat Exchanger | Titanium, stainless steel, plate heat exchanger, shell-and-tube, tank coil, or secondary loop by chemistry |
| Pump Flow | Configured according to heat exchanger, tank coil, pipe length, and circulation requirement |
| Pump Pressure | Standard or customized according to pressure loss, filters, tank coil, and installation layout |
| Chiller Type | Air-cooled, water-cooled, heating and cooling, or custom electroplating cooling system |
| Control | Digital controller, PLC, alarm output, flow switch, remote start/stop optional |
| Voltage | 220V / 380V / 400V / 415V / 460V, 50Hz / 60Hz, custom export voltage |
| Protection | High/low pressure, overload, phase protection, anti-freeze, water level, flow alarm, pump protection |
| Installation | Indoor workshop, acid mist area, outdoor option, high ambient or protected electrical cabinet by review |
Custom Engineering Options for Electroplating Cooling
APT can configure electroplating chillers according to bath chemistry, heat load, corrosion risk, heat exchanger material, pump flow, tank layout, ambient temperature, voltage, and control requirements.
Titanium Heat Exchanger and Material Review
Titanium, stainless steel, plate, shell-and-tube, or custom heat exchanger review according to chemistry.
Secondary Loop and Corrosion Isolation
Indirect clean-water loop design to reduce direct contact with aggressive or dirty process fluids.
Air-Cooled / Water-Cooled Layout
Air-cooled for practical standalone installation or water-cooled for larger heat loads and plant utilities.
Heating and Cooling Temperature Control
Heating and cooling temperature control units for chemical tanks requiring two-way temperature management.
Pump Flow, Tank, Filter, and Bypass Options
Custom pump, tank, filter, bypass, flow switch, pressure gauge, and maintenance-friendly water circuit.
Protected Electrical Cabinet, Voltage, and Export Configuration
Protected cabinet, acid mist review, custom voltage, PLC, alarm output, documentation, and export packaging.
Electroplating Chiller Project Case Examples
Electroplating and anodizing projects often require project-based review for heat load, heat exchanger material, electrical protection, and long-term operation.

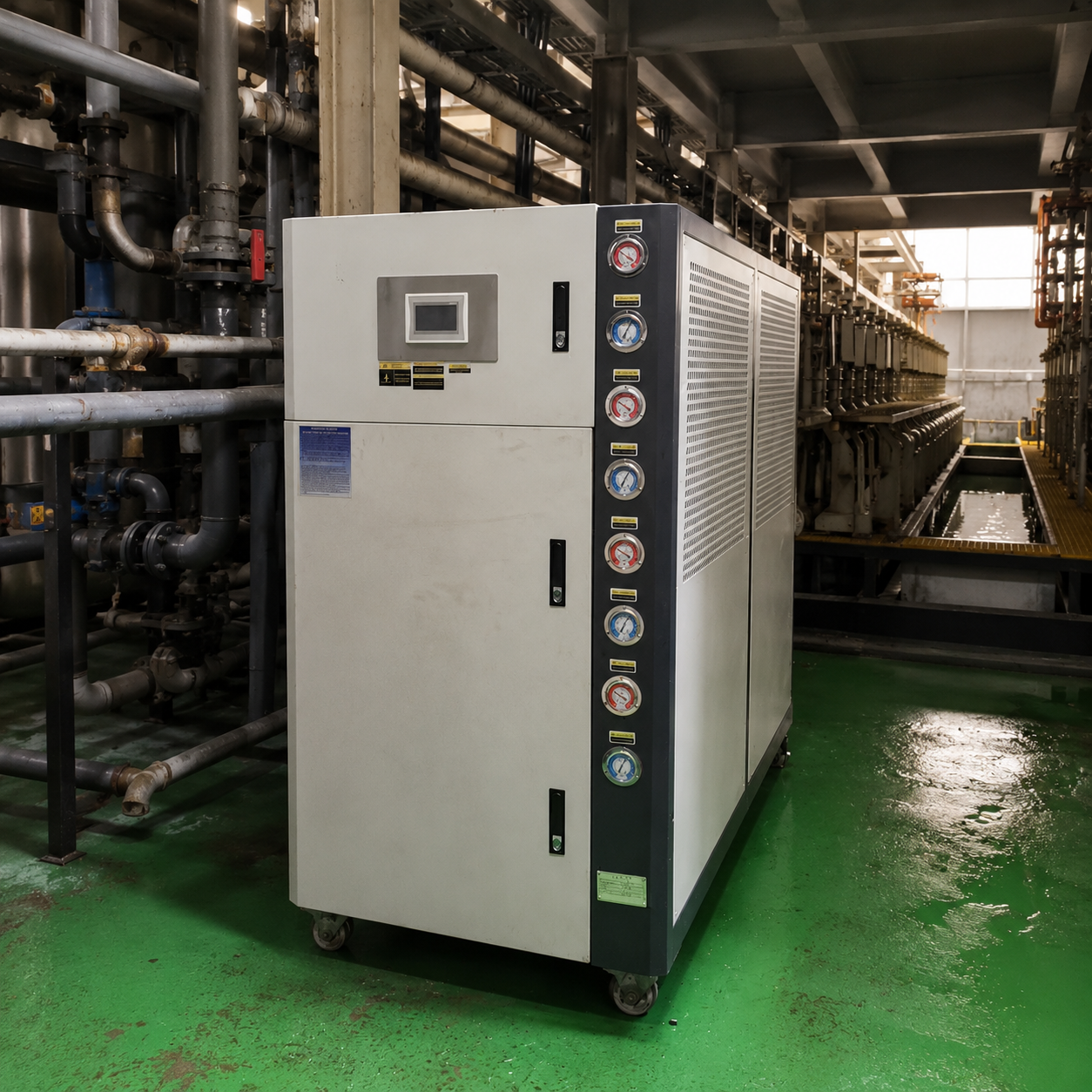

40HP Water-Cooled Electroplating Chiller
This 40HP water-cooled electroplating chiller is configured for plating bath cooling and continuous surface treatment production. Water-cooled configuration can be suitable when heat load is high, workshop space is limited, or stable heat rejection is required for long operating hours.

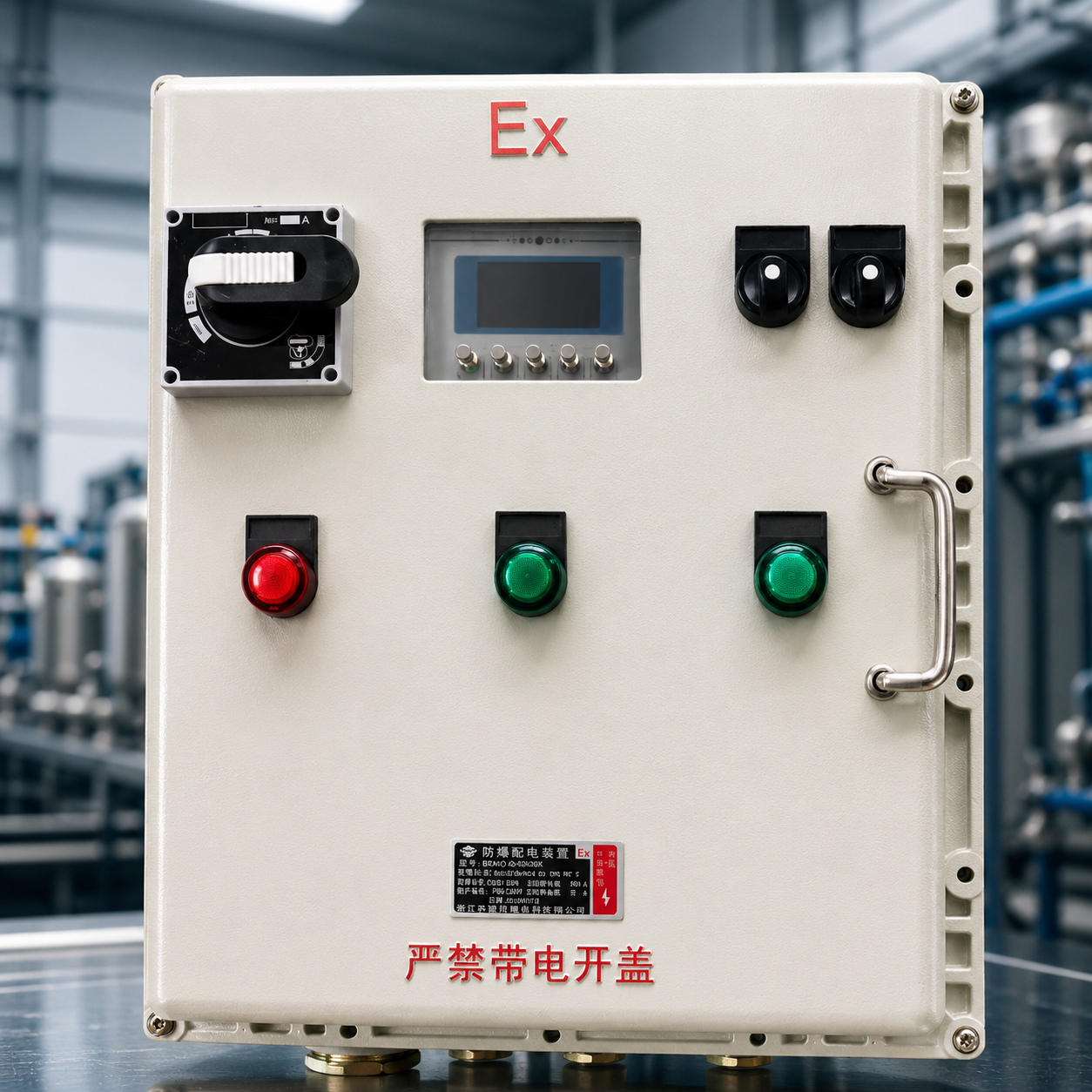

Explosion-Proof and Corrosion-Resistant Control Cabinet
For plating workshops with acid mist, conductive vapor, or stricter electrical safety requirements, APT can review protected control cabinet design, sealed layout, corrosion-resistant treatment, and project-specific electrical components.
Six-Unit Parallel Heating and Cooling System
Some chemical tanks require both heating and cooling to maintain a narrow process temperature range. APT can configure parallel heating and cooling temperature control units for multiple tanks, staged capacity, redundancy, and maintenance planning.
Quote Information Checklist for Electroplating Chillers
To recommend a suitable electroplating chiller or anodizing chiller, APT engineers need bath data, chemistry information, heat load, temperature requirement, cooling method, and installation details. If exact data is not available, tank photos, process description, current load, and target temperature can be used for preliminary review.
- Plating or anodizing process type
- Bath volume and tank dimensions
- Bath chemistry and chemical composition
- Target bath temperature and allowable temperature range
- Current load, rectifier power, or estimated heat generation
- Existing cooling method if available
- Direct bath cooling or secondary loop requirement
- Required heat exchanger material if known
- Required flow rate
- Required pump pressure
- Number of tanks or production lines
- Continuous operation schedule
- Ambient temperature and acid mist condition
- Installation space and airflow direction
- Voltage, phase, and frequency
- Control requirements: alarm output, PLC, HMI, Modbus, remote signal, interlock
- Special options: titanium exchanger, stainless circuit, protected cabinet, heating and cooling, high ambient, outdoor cabinet

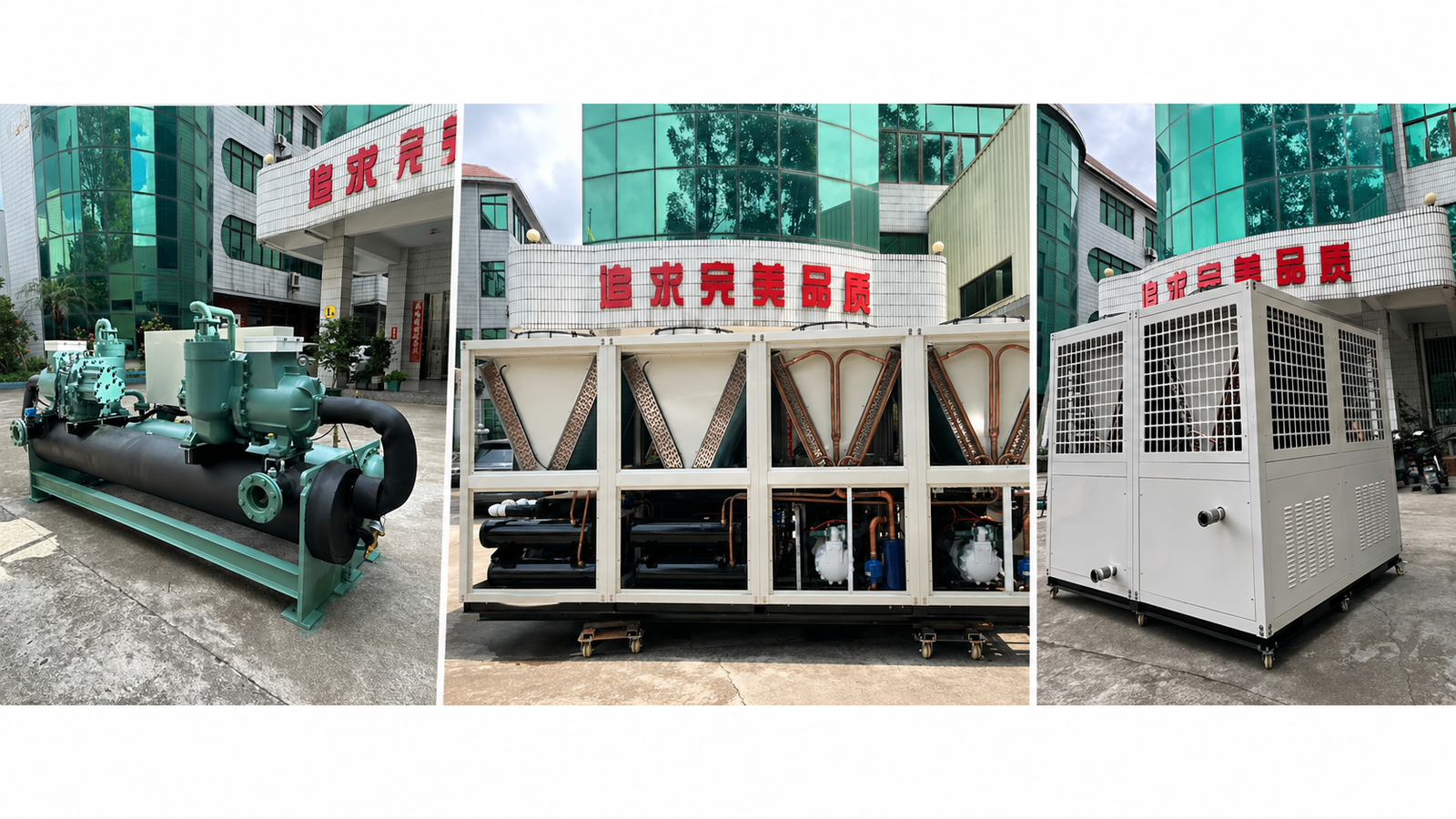

Manufacturing, Testing, and Export Support
APT supports electroplating chiller manufacturing, refrigeration system testing, pump and water circuit checking, control logic inspection, packaging, documentation, and export shipment preparation.
As an industrial chiller manufacturer for electroplating and anodizing cooling applications, APT supports custom cooling capacity, pump flow, pump pressure, bath temperature control, heat exchanger material review, corrosion-resistant design, air-cooled or water-cooled configuration, heating and cooling options, voltage options, factory testing, and export documentation.
Workshop Production
Manufacturing with compressor, condenser, evaporator, pump, tank, heat exchanger, electrical cabinet, and project-specific assembly.
Performance Testing
Cooling performance, water circulation, pump pressure, temperature control, alarm logic, and pre-shipment inspection.
Export Documentation
Support for datasheets, manuals, packing details, voltage confirmation, and quotation documents.
Packaging & Shipment
Export packaging, inspection photos, shipment coordination, and container loading support.
Related Product and Engineering Pages
Compare standard and custom APT chiller directions for electroplating and anodizing cooling requirements.
Related Industrial Cooling Applications
APT also supports other industrial process cooling applications that require stable chilled-water temperature and reliable equipment protection.
Thermal Spray Cooling
Cooling for HVOF spray gun and plasma spray torch cooling circuits.
ApplicationLaser Cooling
Cooling for laser sources, optics, cutting heads, welding heads, and OEM laser equipment.
ApplicationInjection Molding Cooling
Mold cooling and hydraulic cooling for plastic injection molding equipment.
ApplicationDie Casting Cooling
Cooling for die casting machines, molds, hydraulic systems, and high-temperature production.
ApplicationChemical Process Cooling
Temperature control for reactors, tanks, heat exchangers, and industrial process loops.
Electroplating Chiller FAQ
These questions help engineers and buyers prepare electroplating cooling data before requesting a formal quotation.
What is an electroplating chiller?
An electroplating chiller is an industrial process cooling system used to remove heat from plating baths, electrolyte tanks, anodizing baths, and surface treatment process loops so the bath temperature can remain within the required process range.
Why is temperature control important in electroplating?
Electroplating bath temperature affects coating thickness, brightness, adhesion, surface consistency, chemical consumption, and bath life. Stable cooling helps keep the plating process within the required operating window.
What size chiller do I need for a plating bath?
Chiller size depends on bath volume, tank dimensions, target bath temperature, electrochemical heat load, current load, production schedule, ambient temperature, cooling method, and heat exchanger efficiency.
Do electroplating chillers need titanium heat exchangers?
Some corrosive plating or anodizing baths may require titanium heat exchangers or titanium coils. If direct contact with aggressive chemistry is not suitable, an indirect secondary cooling loop may be recommended.
Should I use direct cooling or a secondary cooling loop?
Direct cooling may be suitable when the heat exchanger material is compatible with the bath chemistry. A secondary cooling loop is often safer when the process fluid is corrosive, dirty, or difficult to maintain.
Can APT design chillers for anodizing lines?
Yes. APT can design anodizing chiller systems for aluminum anodizing and related surface treatment lines. The selection should consider electrolyte temperature, bath volume, heat load, acid compatibility, and continuous operation requirements.
Should I choose an air-cooled or water-cooled chiller for electroplating?
Air-cooled chillers are easier to install and do not require cooling tower water. Water-cooled chillers may be preferred for larger heat loads, continuous production, indoor plant rooms, or centralized surface treatment lines.
Can one chiller cool multiple plating tanks?
Yes. A centralized plating bath cooling system can serve multiple tanks if the total heat load, pump flow, piping layout, temperature requirements, heat exchanger design, and control logic are properly reviewed.
Can APT provide heating and cooling temperature control units?
Yes. For chemical tanks that require both heating and cooling, APT can review heating and cooling temperature control units, parallel systems, staged capacity, and PLC control options.
How does corrosion risk affect chiller design?
Corrosion risk affects heat exchanger material, piping, pump selection, cabinet protection, and whether direct or indirect cooling should be used. Bath chemistry, acid mist, pH, chloride level, and maintenance conditions should be reviewed.
What information should I provide for an electroplating chiller quotation?
Please provide plating process, bath volume, tank dimensions, chemical composition, target bath temperature, heat load or current load, direct or secondary loop preference, required flow, voltage, ambient temperature, and installation conditions.
Can APT customize electroplating chillers for overseas factories?
Yes. APT can customize voltage, frequency, pump, tank, heat exchanger, protected electrical cabinet, air-cooled or water-cooled layout, heating and cooling options, documentation, and export packaging for overseas electroplating projects.
Need a Chiller for Your Electroplating or Anodizing Line?
Share your plating process, bath volume, tank dimensions, target temperature, chemical composition, heat load, cooling method, heat exchanger material requirement, voltage, ambient temperature, acid mist condition, and installation layout. APT engineers will help recommend a suitable electroplating chiller, anodizing chiller, titanium heat exchanger chiller, water-cooled chiller, air-cooled chiller, or custom process cooling system.
