20–50 HP Large Air-Cooled Chillers
APT 20–50 HP large air-cooled chillers provide high-capacity process cooling for production lines, die casting, thermal spray, plastic extrusion, injection molding, chemical process cooling, hydraulic systems, centralized chilled-water loops, and high ambient industrial applications where a cooling tower is not preferred.
When Should You Choose a 20–50 HP Large Air-Cooled Chiller?
A 20–50 HP large air-cooled chiller is suitable when industrial equipment or a production process needs higher cooling capacity than standard 5–20 HP chillers, but the site still prefers an air-cooled system without a cooling tower. It is commonly reviewed for continuous production lines, larger molds, process tanks, die casting, thermal spray, extrusion, chemical process cooling, hydraulic cooling, and centralized small-to-medium chilled-water loops.
Where This 20–50 HP Series Fits in the APT Air-Cooled Chiller Range
This page covers the 20–50 HP large air-cooled chiller series under the APT air-cooled chiller category. It sits after 5–20 HP industrial chillers and before 50+ HP heavy-duty or fully custom air-cooled systems.
1–5 HP Compact Air-Cooled Chiller
Small point-of-use cooling for ice bath, CNC spindle, laboratory equipment, laser, and OEM machines.
View Compact Series → Industrial Range5–20 HP Industrial Air-Cooled Chiller
Medium process cooling for factory equipment, injection molding, laser, plating, CNC, and auxiliary systems.
View 5–20 HP Series → Current Series20–50 HP Large Air-Cooled Chiller
Higher-capacity air-cooled systems for continuous industrial process cooling and heavier heat loads.
Current Page → CustomCustom / Heavy-Duty Air-Cooled Chiller
Project-specific design for high ambient, outdoor layout, special voltage, pump, tank, and controls.
Review Custom Options →Capacity & Model Selection Matrix
Use this matrix to compare the 20 HP, 25 HP, 30 HP, 40 HP T3, and 50 HP air-cooled chiller directions before requesting a formal quotation.
| Model Range | Reference Capacity Direction | Best For | Key Selection Point | Next Step |
|---|---|---|---|---|
| 20 HP | Approx. 50–60 kW / 14–17 TR reference | Medium-large process equipment, die casting, extrusion, thermal spray auxiliary cooling | Heat load, water temperature, pump flow, ventilation | View 20 HP Chiller Page |
| 25 HP | Approx. 60–75 kW / 17–21 TR reference | Plastics, hydraulic systems, process tanks, heat exchanger loops | Continuous operation, tank volume, condenser airflow | View 25 HP Chiller Page |
| 30 HP | Approx. 75–90 kW / 21–26 TR reference | Production lines, hydraulic cooling, chemical process loops | Process stability, pump pressure, heat load margin | View 30 HP Chiller Page |
| 40 HP T3 | Approx. 100–120 kW / 28–34 TR reference | High ambient regions, Middle East factory cooling, die casting, extrusion | T3 condenser, ambient temperature, ventilation | View 40 HP T3 Chiller Page |
| 50 HP | Approx. 125–150 kW / 36–43 TR reference | Centralized industrial cooling, multi-point loops, heavy-duty equipment | System layout, pump head, duty cycle, installation space | View 50 HP Chiller Page |
Typical 20 HP, 25 HP, 30 HP, 40 HP T3, and 50 HP Directions
These are model direction references. Final selection should be confirmed according to the actual process heat load and operating conditions.

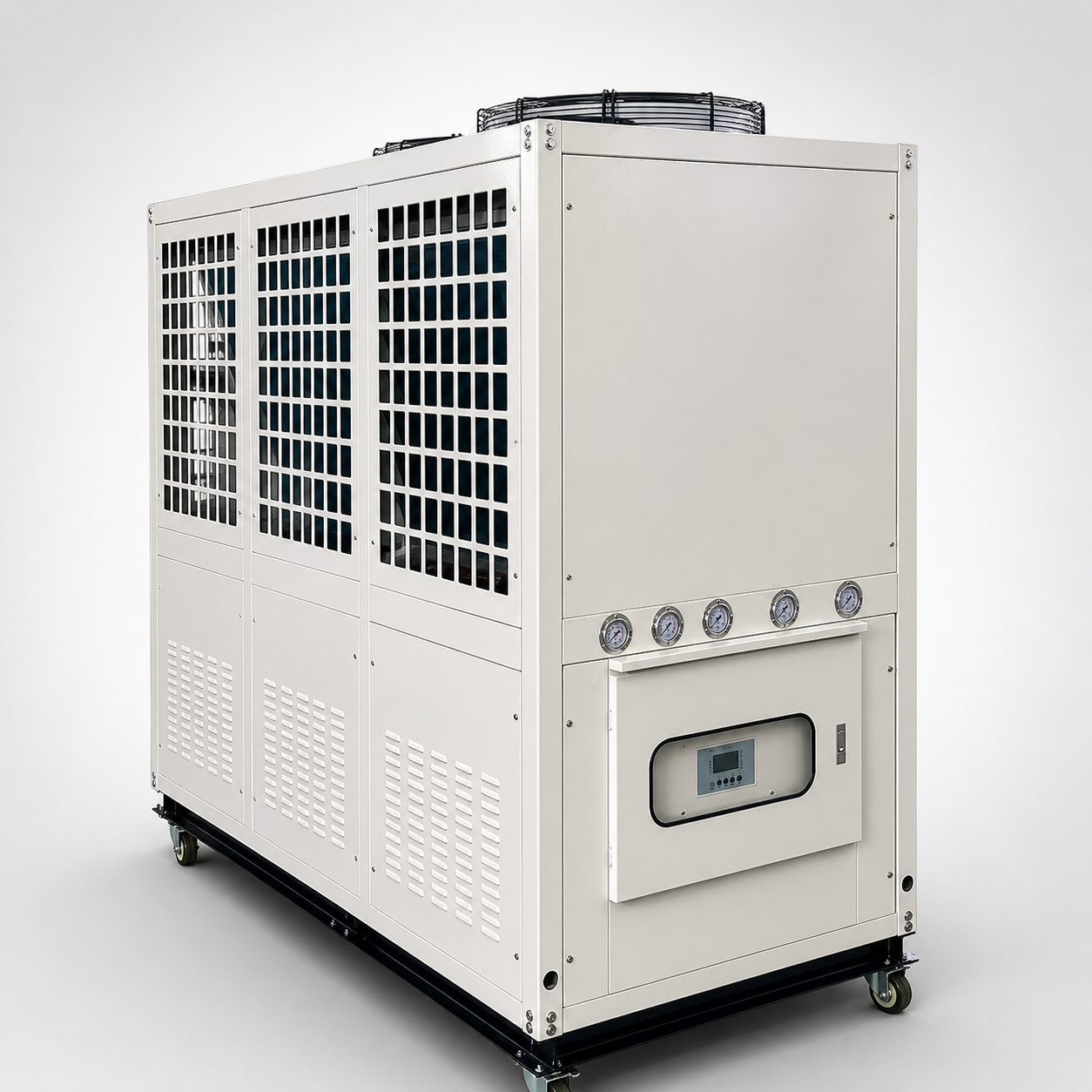

20 HP Air-Cooled Chiller
Approx. 50–60 kW reference direction for medium-large process equipment, die casting, extrusion, and auxiliary cooling.
Request Model Review

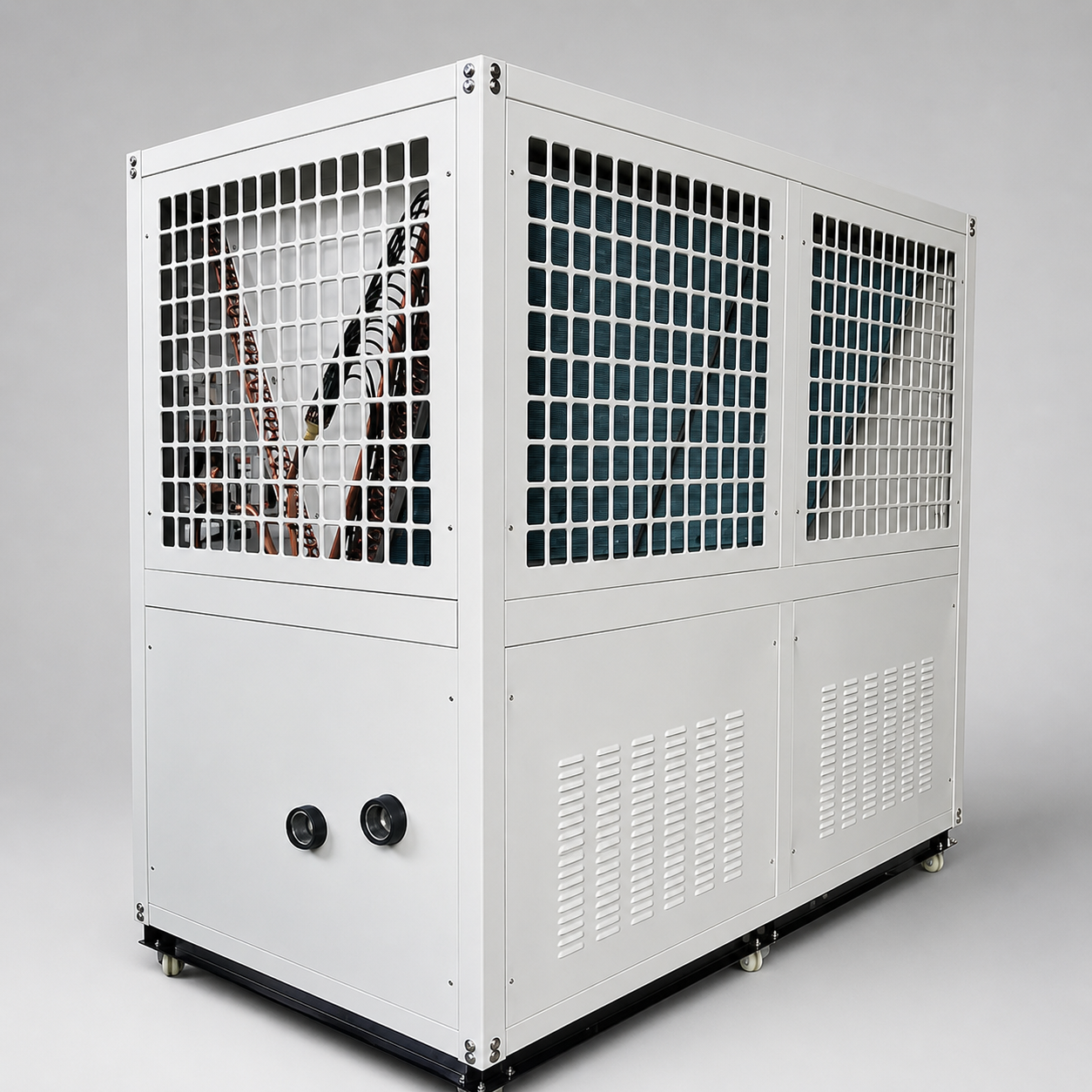

25 HP Air-Cooled Chiller
Approx. 60–75 kW reference direction for plastics, hydraulic systems, process tanks, and heat exchanger loops.
Request Model Review
30 HP Air-Cooled Chiller
Approx. 75–90 kW reference direction for production lines, hydraulic cooling, and chemical process loops.
Request Model Review

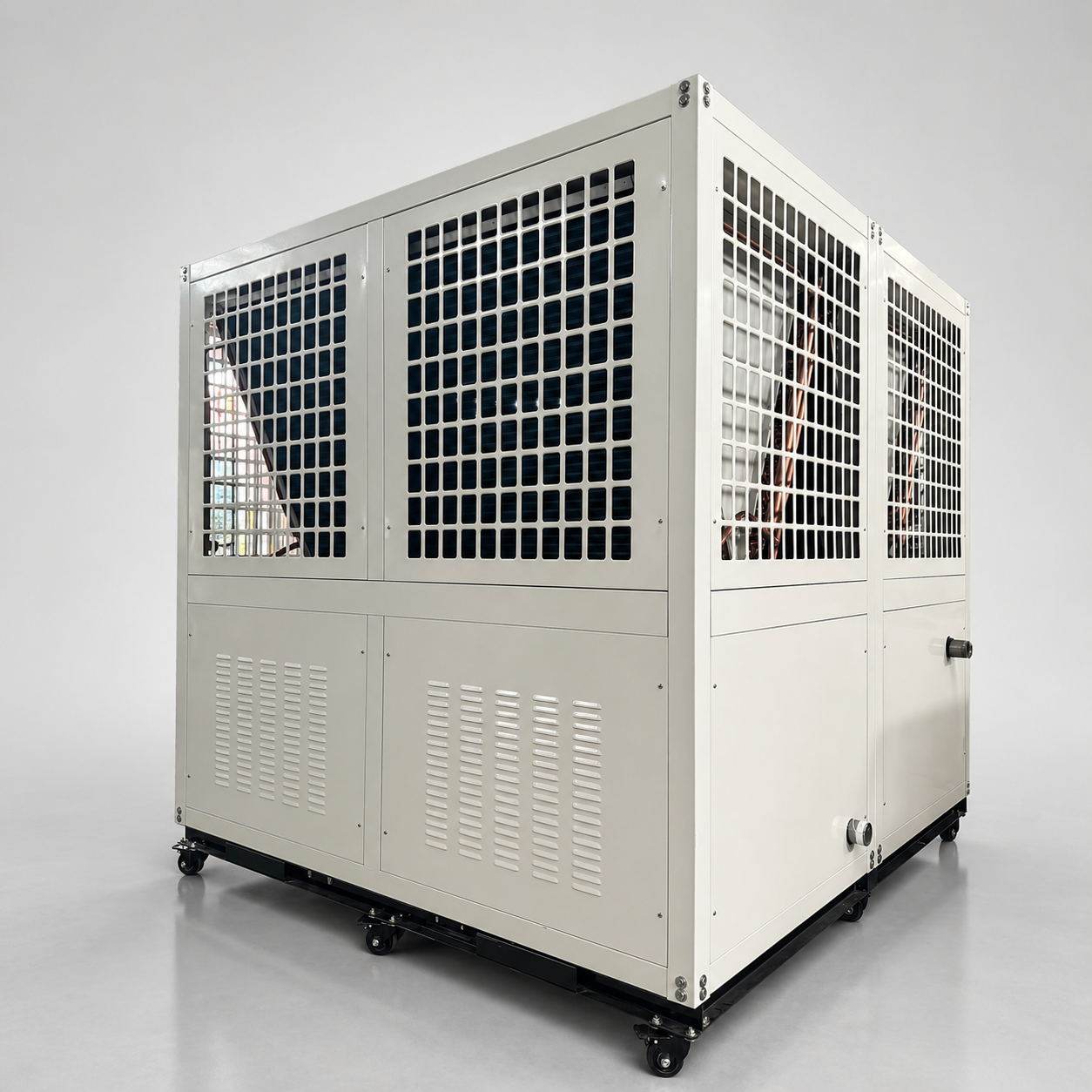

40 HP T3 High-Ambient Air-Cooled Chiller
Approx. 100–120 kW reference direction for hot climate regions and high ambient industrial cooling projects.
Request Model Review

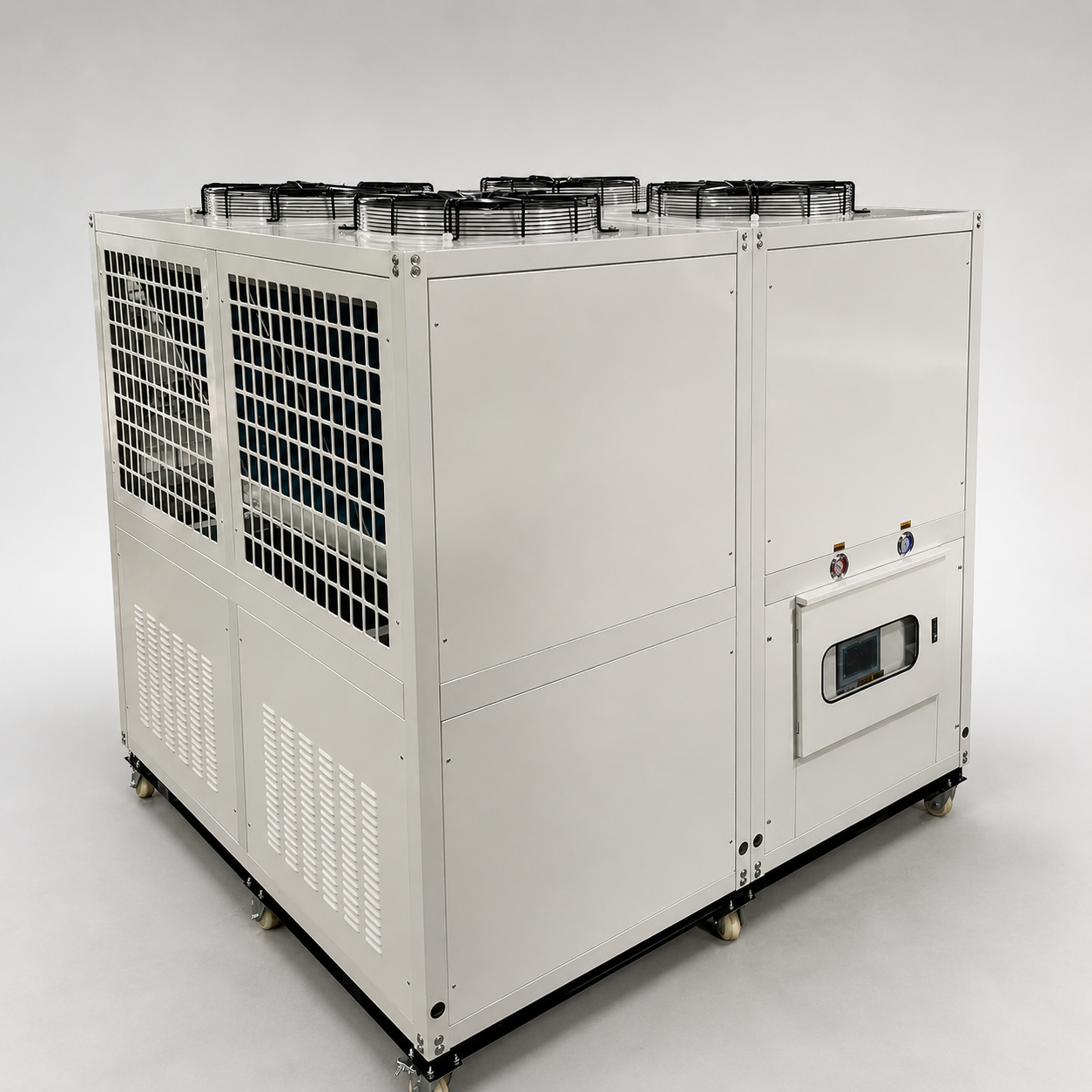

50 HP Air-Cooled Chiller
Approx. 125–150 kW reference direction for centralized process cooling and multi-point chilled-water loops.
Request Model Review20–50 HP Large Air-Cooled Chiller Technical Specification
Final configuration depends on actual heat load, process temperature, pump requirement, voltage, ambient temperature, installation space, ventilation, and operating schedule.
| Parameter | Typical Range / Options | Engineering Notes |
|---|---|---|
| Cooling Capacity | 20 HP, 25 HP, 30 HP, 40 HP T3, 50 HP direction | Actual cooling capacity depends on water temperature, ambient temperature, compressor configuration, and duty cycle. |
| Chiller Type | Large air-cooled industrial process chiller | No cooling tower is required, but condenser airflow and service clearance are important. |
| Cooling Medium | Water, glycol water, or reviewed process coolant | Coolant type affects pump, evaporator, material, and temperature selection. |
| Outlet Temperature | Project-specific process temperature range | Target temperature should be reviewed with heat load and ambient condition. |
| Compressor | Scroll, semi-hermetic, single-circuit, or dual-circuit direction by project | Selected according to heat load, temperature range, reliability, and operating schedule. |
| Refrigerant Circuit | Single or dual circuit by configuration | Redundancy and part-load operation can be reviewed by project. |
| Air-Cooled Condenser | Large finned condenser with axial fans | Ventilation, dust, high ambient, and installation clearance affect performance. |
| Evaporator / Heat Exchanger | Shell-and-tube, plate, or custom heat exchanger direction | Evaporator selection depends on water quality, flow, corrosion risk, and maintenance needs. |
| Pump System | High-flow pump, high-pressure pump, dual pump, bypass or filter review | Pump flow and pressure should be matched with pipe distance and equipment resistance. |
| Water Tank | Built-in or external tank by project | Tank volume can support process stability and circulation requirements. |
| Voltage | Custom voltage, phase, and frequency by project | Confirm local power supply before quotation. |
| Control System | Digital controller, PLC, touchscreen, remote alarm or communication options | Control options can be customized for factory automation requirements. |
| Protection | Compressor, pump, pressure, flow, overload, phase, and temperature protection | Protection logic should match continuous industrial operating conditions. |
| High Ambient / T3 Review | Enhanced condenser and protection review for hot-climate projects | Actual ambient temperature, ventilation, and site layout must be confirmed. |
| Installation | Indoor workshop, ventilated plant, equipment side, or reviewed outdoor layout | Airflow, service space, drainage, noise, and heat rejection should be checked. |
| Customization | Pump, tank, voltage, heat exchanger, cabinet, controls, alarms | APT can review project-specific large air-cooled chiller configurations. |
Component Configuration
Large air-cooled chiller performance depends on the combined refrigeration circuit, condenser airflow, evaporator, pump, tank, and control configuration.
Compressor & Refrigeration Circuit
Compressor and circuit design are reviewed according to cooling load, operating hours, outlet temperature, ambient temperature, and reliability requirement.
Air-Cooled Condenser
The condenser rejects heat to ambient air. Fan airflow, dust, installation clearance, and high ambient conditions should be reviewed.
Shell-and-Tube / Plate / Custom Evaporator
Heat exchanger selection depends on water quality, maintenance needs, corrosion risk, process fluid, and flow rate.
High-Flow Pump & Tank
Pump flow, pump pressure, tank volume, and pipe resistance affect real cooling performance and process stability.
Control Panel & Protection
PLC, touchscreen, alarm output, phase protection, pressure protection, flow protection, and communication can be reviewed by project.
Cabinet, Ventilation & Service Layout
Cabinet layout, condenser airflow direction, water connections, service access, and installation clearance should match the factory site.
Application Fit Matrix
Use this matrix to confirm whether a 20–50 HP large air-cooled chiller is a suitable starting point for your industrial process.
| Application | Fit Level | Typical Requirement | Suggested Review |
|---|---|---|---|
| Injection Molding / Plastic Processing | High | Large molds, hydraulic oil cooling, production line cooling | Review machine size, mold heat load, flow rate, and duty cycle. |
| Plastic Extrusion Line Cooling | High | Extrusion barrels, rollers, dies, vacuum tanks, and production water loops | Review total heat load, continuous operation, and process flow. |
| Die Casting Cooling | High | Mold cooling, hydraulic cooling, foundry process water, high ambient | Review heat shock, temperature stability, water quality, and pump head. |
| Thermal Spray Cooling System | High | Spray gun, torch, power supply, workpiece, and auxiliary cooling | Review heat load, flow rate, pressure requirement, and system redundancy. |
| Chemical Process Cooling | Medium to High | Reactors, tanks, heat exchangers, solvent or process loops | Review corrosion risk, heat exchanger material, and secondary loop design. |
| Hydraulic System Cooling | High | Hydraulic power unit, presses, forming machines, and oil-to-water heat exchange | Review oil heat load, heat exchanger size, and operating schedule. |
| Centralized Process Cooling | Medium to High | Multi-point chilled-water loop for factory equipment | Review total heat load, pipe network, pump head, redundancy, and control logic. |
| Industrial Heat Exchanger Cooling | Medium to High | Process heat exchanger, tank cooling, test systems, or production water loops | Review fluid compatibility, heat exchanger material, and flow resistance. |
Suitable vs Not Suitable Conditions
Suitable For
- High heat-load industrial equipment
- Continuous production operation
- Large molds or process tanks
- Multi-point chilled-water loops
- No cooling tower preferred
- Factory equipment process cooling
- High ambient project review
- Pump, tank, evaporator and control customization
Not Recommended For
- Small lab-only loads
- Small equipment suitable for 1–5 HP compact chillers
- Medium equipment suitable for 5–20 HP chillers
- Poor condenser ventilation
- Very high ambient without high ambient review
- Corrosive liquid without material review
- Explosion-proof requirement without custom safety review
- Projects where water-cooled efficiency is clearly required
High Ambient T3 Air-Cooled Chiller Review
40 HP T3 and high ambient air-cooled chiller projects should be reviewed according to actual environment temperature, ventilation, condenser design, compressor protection, electrical configuration, and installation conditions. High ambient design should not be assumed only from horsepower.
Enhanced Condenser Margin
Condenser capacity and fan airflow can be reviewed for hot-climate heat rejection requirements.
Compressor Protection Logic
High pressure, overload, phase, and temperature protection help support demanding operating conditions.
Ventilation & Outdoor Layout Review
Outdoor or high-temperature workshop installation requires airflow and service clearance review.
Regional Voltage & Electrical Design
Voltage, phase, frequency, panel layout, and electrical protection can be reviewed for export projects.
20–50 HP Large Air-Cooled Chiller Engineering Options
APT can configure large air-cooled chillers according to process heat load, pump requirements, site voltage, ambient condition, installation layout, and application needs.
Custom Voltage
Voltage, phase, and frequency can be reviewed according to country and site electrical standards.
Custom Pump Flow and Pressure
Pump selection can be matched to pipe distance, filters, process equipment, and pressure loss.
Water Tank Volume
Tank size can be adjusted according to process stability, water volume, and temperature control needs.
Shell-and-Tube Evaporator
Shell-and-tube evaporators can be reviewed for industrial water loops and maintenance requirements.
Plate Heat Exchanger Option
Plate heat exchangers may be considered for compact heat exchange and reviewed water quality.
Stainless or Corrosion-Resistant Water Circuit
Stainless or corrosion-resistant options can be considered for clean water or chemical-related processes.
Dual Pump / Bypass / Filter Review
Process reliability can be improved through pump redundancy, bypass, filter, and service-friendly design.
PLC / Touchscreen / Remote Alarm
Control interface and alarm logic can be reviewed for factory automation and remote monitoring.
Communication Interface
Communication options can be reviewed for integration with equipment or plant control systems.
High Ambient / Outdoor Review
High ambient or outdoor projects require condenser, cabinet, protection, and ventilation review.
Quote Information Checklist
To recommend a suitable 20–50 HP large air-cooled chiller, APT engineers need actual process and site conditions rather than horsepower only.
- Application
- Required cooling capacity or heat load
- Current equipment power or heat source
- Target outlet temperature
- Inlet temperature
- Flow rate and pump pressure
- Coolant type and water quality
- Ambient temperature
- Voltage / phase / frequency
- Installation space and ventilation
- Pipe distance and height difference
- Tank volume if required
- Evaporator or heat exchanger material requirement
- Control / alarm / communication requirement
- Photos, drawings, existing chiller data
- Destination country
Related Air-Cooled Product Pages
Air-Cooled Chillers
Return to the complete APT air-cooled industrial chiller product category and selection matrix.
View Air-Cooled Chillers → Compact Range1–5 HP Compact Air-Cooled Chillers
Compare smaller compact chillers for point-of-use cooling, ice bath, CNC, lab, and OEM systems.
View Compact Chillers → Industrial Range5–20 HP Industrial Air-Cooled Chillers
Compare medium-capacity air-cooled chillers for factory equipment and production machines.
View 5–20 HP → CustomCustom Chiller Solutions
Request project-specific high ambient, pump, tank, voltage, heat exchanger, or layout configuration.
View Custom Solutions →Related Application Pages
Injection Molding Cooling
Cooling for molds, hydraulic oil, auxiliary loops, and plastics process equipment.
View Injection Cooling → ApplicationDie Casting Cooling
Cooling support for die casting machines, molds, hydraulic systems, and foundry equipment.
View Die Casting Cooling → ApplicationThermal Spray Cooling System
Cooling for thermal spray guns, power supplies, auxiliary equipment, and high heat-load loops.
View Thermal Spray Cooling → ApplicationChemical Process Cooling
Temperature control for reactors, tanks, heat exchangers, and process water loops.
View Chemical Cooling → ComponentsParts & Heat Exchangers
Review heat exchanger material and process fluid compatibility for chiller systems.
View Heat Exchangers → ApplicationLaser Cooling
Industrial process cooling for laser systems, sources, optics, and production equipment.
View Laser Cooling →Related Resource Pages
Chiller Selection Guides
Understand capacity, temperature, flow, pump pressure, and selection logic before quotation.
View Guides → InsightsEngineering Insights
Read engineering articles about industrial chiller selection, maintenance, and custom cooling projects.
Read Insights → FAQFAQ Center
Find answers to industrial chiller selection, quotation, installation, and maintenance questions.
View FAQ → DownloadsTechnical Downloads
Access catalogs, datasheets, checklists, and application PDFs for project review.
View Downloads → ToolChiller Selection Tool
Organize cooling load, temperature, flow, pump pressure, voltage, and application data.
Use Tool →20–50 HP Large Air-Cooled Chiller FAQ
What is a 20–50 HP large air-cooled chiller used for?
It is used for high-capacity industrial process cooling applications such as injection molding, plastic extrusion, die casting, thermal spray, chemical process cooling, hydraulic cooling, centralized production line cooling, process tanks, and industrial heat exchanger loops.
Is a 20 HP air-cooled chiller the same as a 20 ton chiller?
No. HP usually refers to compressor power range, while ton or TR refers to cooling capacity. A 20 HP air-cooled chiller may be around 50–60 kW or approximately 14–17 TR depending on operating conditions, but final capacity must be confirmed by engineering review.
How many kW is a 30 HP air-cooled industrial chiller?
A 30 HP air-cooled chiller is commonly referenced around 75–90 kW depending on chilled-water temperature, ambient temperature, compressor configuration, refrigerant circuit design, evaporator selection, and condenser airflow.
What cooling capacity is available for 20–50 HP air-cooled chillers?
The 20–50 HP range is commonly used as a reference for approximately 50–150 kW process cooling. Actual cooling capacity depends on water temperature, ambient temperature, compressor selection, evaporator type, condenser airflow, and process heat load.
How do I choose between 20 HP, 25 HP, 30 HP, 40 HP, and 50 HP?
Selection depends on process heat load, target water temperature, inlet temperature, flow rate, pump pressure, ambient temperature, operating schedule, condenser ventilation, evaporator type, and cooling capacity margin.
Can a 40 HP air-cooled chiller work in high ambient temperature?
Yes, a 40 HP T3 or high ambient air-cooled chiller can be reviewed for hot-climate projects, but final design depends on actual ambient temperature, condenser margin, compressor protection, refrigerant circuit, ventilation, and electrical conditions.
Does a 20–50 HP air-cooled chiller need a cooling tower?
No. An air-cooled chiller rejects heat to ambient air through condenser fans and does not require a cooling tower. However, enough ventilation and service clearance are required for stable operation.
When should I consider a water-cooled chiller instead?
A water-cooled chiller may be considered when the project has larger heat load, indoor heat rejection limits, available cooling tower or condenser water, or continuous-duty efficiency requirements that make water-cooled design more suitable.
Can APT customize the pump, tank, evaporator, and control system?
Yes. APT can review pump flow and pressure, tank volume, evaporator type, shell-and-tube material, voltage, refrigerant circuit, filters, bypass lines, PLC, alarms, and communication options according to project requirements.
What information is needed to quote a 20–50 HP air-cooled industrial chiller?
Please provide cooling load, target chilled-water temperature, inlet temperature, flow rate, pump pressure, coolant type, ambient temperature, application, power supply, installation space, ventilation conditions, destination country, and any special requirements for pump, tank, evaporator, or control system.
Need a 20–50 HP Air-Cooled Chiller Recommendation?
Share your cooling load, target water temperature, inlet temperature, flow rate, pump pressure, coolant type, ambient temperature, voltage, installation space, ventilation conditions, destination country, and application details. APT engineers can review your high-capacity industrial process cooling project and recommend a suitable 20 HP, 25 HP, 30 HP, 40 HP T3, or 50 HP large air-cooled chiller configuration.
