5–20 HP Industrial Air-Cooled Chillers
APT 5–20 HP industrial air-cooled chillers are designed for medium-capacity process cooling applications such as injection molding, laser equipment, electroplating, CNC machines, thermal spray auxiliary cooling, factory equipment, and industrial water cooling systems where cooling tower installation is not preferred.
When Should You Choose a 5–20 HP Industrial Air-Cooled Chiller?
A 5–20 HP industrial air-cooled chiller is suitable when a production machine, laser system, injection molding process, electroplating bath, CNC machine, thermal spray auxiliary loop, or factory equipment needs stable medium-capacity chilled-water cooling without a cooling tower. It is usually a better choice than a 1–5 HP compact chiller when the heat load, operating hours, pump flow, tank volume, or industrial duty cycle is higher.
Where This 5–20 HP Series Fits in the APT Air-Cooled Chiller Range
This page covers the 5–20 HP industrial air-cooled chiller series under the APT air-cooled chiller category. It sits between compact 1–5 HP point-of-use chillers and larger 20–50 HP air-cooled industrial systems.
1–5 HP Compact Air-Cooled Chiller
Small point-of-use cooling for ice bath, CNC spindle, laboratory equipment, laser, and OEM machines.
View Compact Series → Current Series5–20 HP Industrial Air-Cooled Chiller
Medium process cooling for factory equipment, injection molding, laser, plating, CNC, and auxiliary systems.
Current Page → Large Range20–50 HP Large Air-Cooled Chiller
Higher-capacity air-cooled systems for continuous production, heavier process loads, and larger water loops.
View 20–50 HP Series → CustomCustom / Heavy-Duty Air-Cooled Chiller
Project-specific design for high ambient, outdoor layout, special voltage, pump, tank, and controls.
Review Custom Options →Capacity & Model Selection Matrix
Use this matrix to choose a 5–20 HP air-cooled chiller direction before requesting a formal quotation.
| Model Range | Typical Cooling Direction | Best For | Key Selection Point | Next Step |
|---|---|---|---|---|

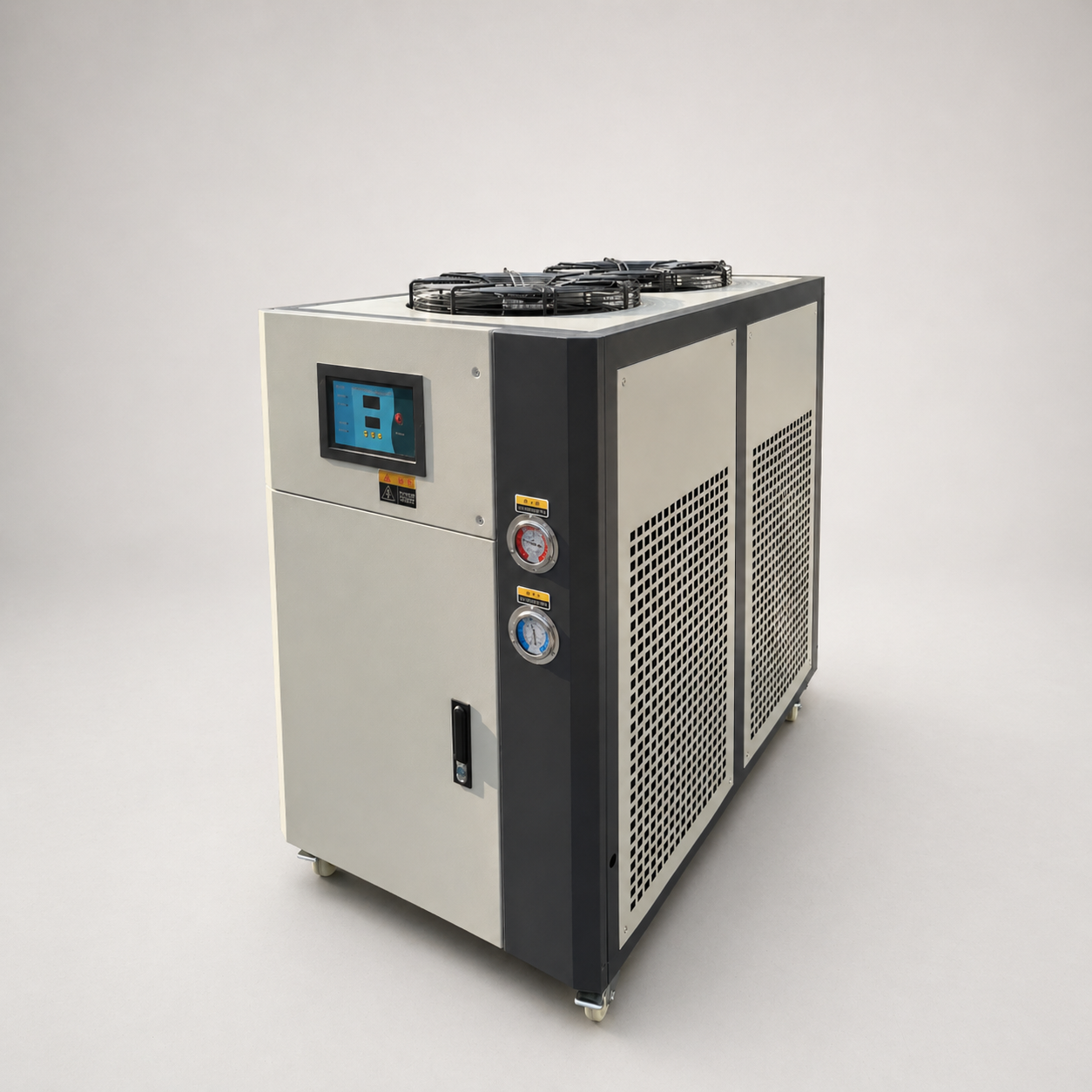

| 5 HP | Entry industrial process cooling | Small injection molding, CNC machine, small laser, auxiliary cooling | Heat load, water flow, pump pressure, duty cycle | View 5 HP Chiller Page |

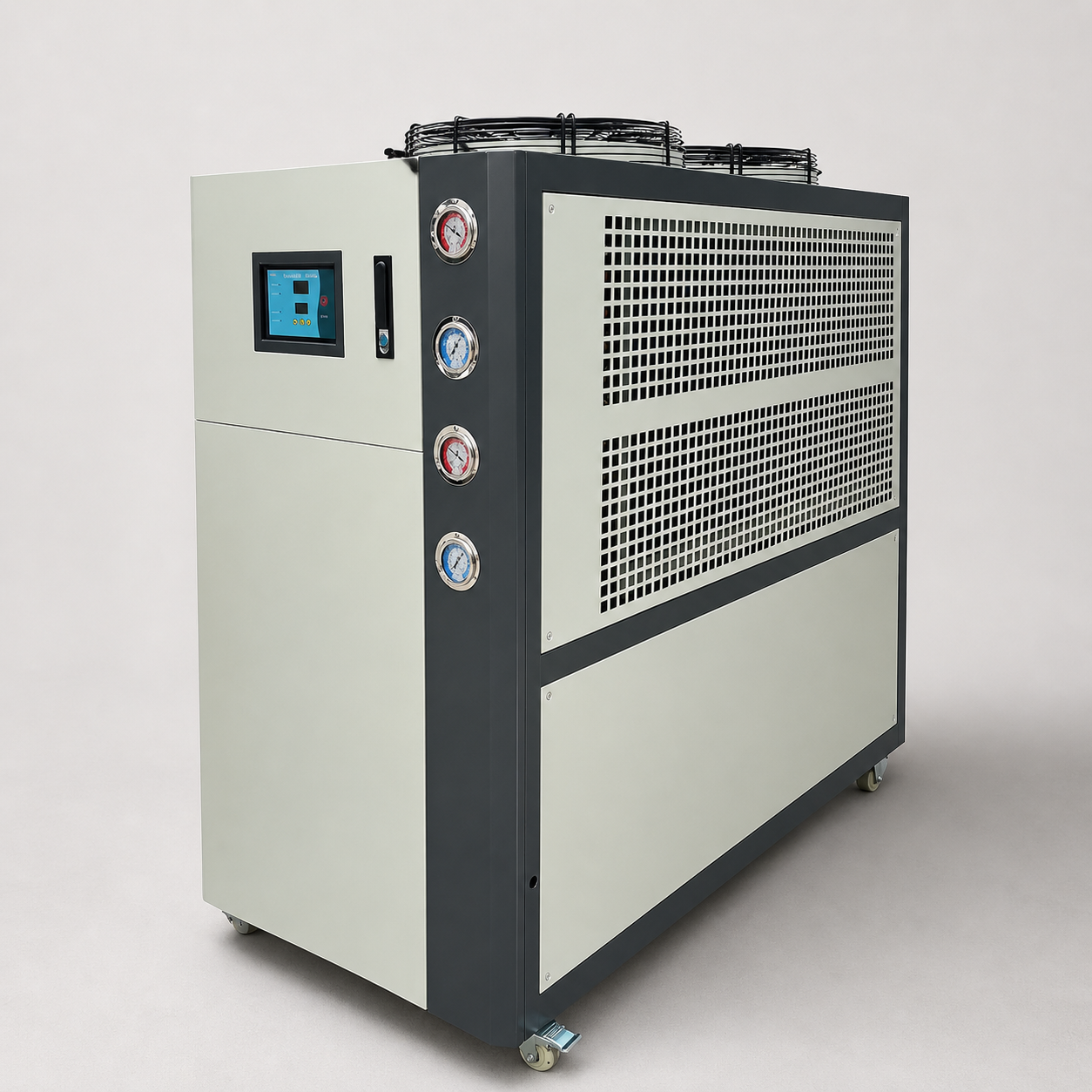

| 10 HP | Standard medium process cooling | Injection molding, laser equipment, plating tanks, machine cooling | Continuous operation, tank volume, ambient temperature | View 10 HP Chiller Page |

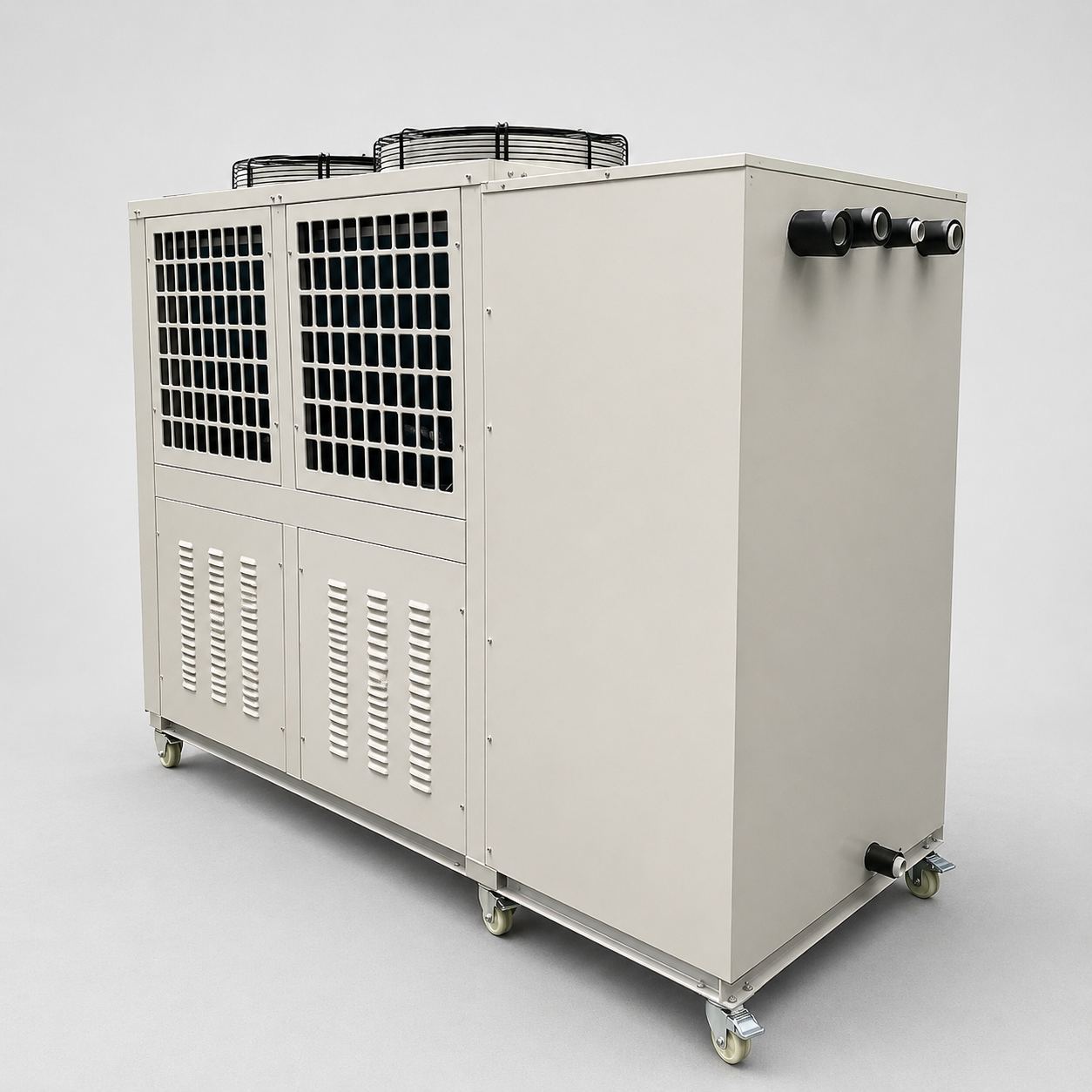

| 15 HP | Higher medium-duty cooling | Multiple small machines, electroplating, thermal spray auxiliary cooling, factory process water | Flow rate, temperature stability, heat load margin | View 15 HP Chiller Page |

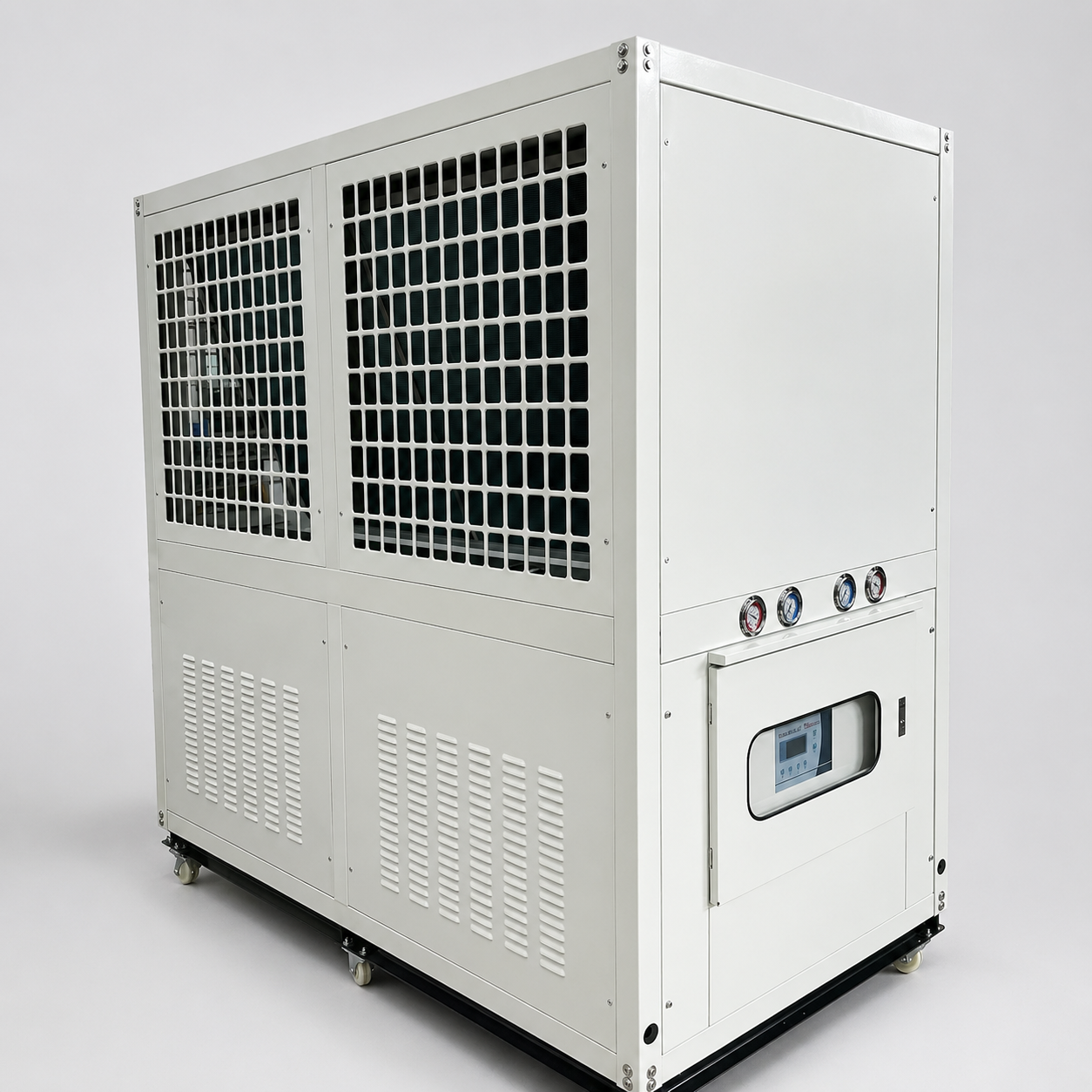

| 20 HP | Upper range industrial cooling | Larger molds, production equipment, process tanks, centralized small loops | Industrial duty cycle, pump head, installation ventilation | View 20 HP Chiller Page |
5–20 HP Industrial Air-Cooled Chiller Technical Specification
Final configuration depends on actual heat load, process temperature, pump requirement, voltage, ambient temperature, installation space, and operating schedule.
| Parameter | Typical Range / Options | Engineering Notes |
|---|---|---|
| Cooling Capacity | 5 HP, 10 HP, 15 HP, 20 HP class by configuration | Actual cooling capacity depends on water temperature, ambient temperature, compressor configuration, and duty cycle. |
| Chiller Type | Industrial air-cooled process chiller | No cooling tower is required, but condenser airflow and service clearance must be considered. |
| Cooling Medium | Water, glycol water, or reviewed process coolant | Coolant type affects pump, evaporator, seal, and temperature selection. |
| Outlet Temperature | Project-specific process temperature range | Target temperature should be reviewed with heat load and ambient condition. |
| Temperature Control Accuracy | Standard digital control or upgraded control options | Stability depends on water tank volume, load fluctuation, flow rate, and control logic. |
| Compressor | Industrial scroll or suitable compressor configuration | Selected according to cooling load, temperature range, and operating schedule. |
| Air-Cooled Condenser | Finned condenser with axial fans | Ventilation, dust, high ambient, and installation clearance affect performance. |
| Evaporator | Tank coil, plate heat exchanger, or shell-and-tube option by project | Evaporator selection depends on water quality, flow, corrosion risk, and maintenance needs. |
| Water Pump | Standard pump, high-flow pump, or high-pressure pump | Pump flow and pressure should be matched with pipe distance and equipment resistance. |
| Water Tank | Built-in tank or project-specific tank volume | Tank volume can improve stability and support process circulation. |
| Refrigerant | System-specific refrigerant configuration | Refrigerant depends on system design, compressor selection, market requirement, and temperature range. |
| Voltage | Custom voltage, phase, and frequency by project | Confirm local power supply before quotation. |
| Control System | Digital controller, alarm output, optional PLC or communication | Control options can be customized for OEM or factory automation requirements. |
| Protection | Compressor, pump, pressure, flow, overload, phase, and temperature protection | Protection logic should match industrial operating conditions. |
| Installation | Indoor workshop, ventilated plant, equipment side, or reviewed outdoor layout | Airflow, service space, drainage, noise, and heat rejection should be checked. |
| Customization | Pump, tank, voltage, heat exchanger, cabinet, controls, alarms | APT can review project-specific industrial air-cooled chiller configurations. |
Component Configuration
For 5–20 HP industrial air-cooled chillers, real performance depends on the combined refrigeration circuit, condenser airflow, pump, tank, heat exchanger, and control configuration.
Compressor
The compressor is selected according to heat load, outlet temperature, operating hours, ambient temperature, and required cooling margin.
Air-Cooled Condenser
The condenser rejects process heat to ambient air. Fan airflow, dust level, installation clearance, and high ambient conditions should be reviewed.
Evaporator / Heat Exchanger
Plate, coil, or shell-and-tube style heat exchange can be considered according to water quality, corrosion risk, flow, and maintenance needs.
Pump & Tank
Pump flow, pump pressure, and tank volume affect heat transfer, circulation stability, and process temperature control.
Control Panel & Protection
Digital controls, alarms, protection logic, and optional communication can support factory equipment and OEM integration.
Cabinet & Service Layout
Cabinet layout, ventilation, access panels, water fittings, and maintenance space should match the installation site.
Application Fit Matrix
Use this matrix to confirm whether a 5–20 HP air-cooled industrial chiller is a suitable starting point for your process.
| Application | Fit Level | Typical Requirement | Suggested Review |
|---|---|---|---|

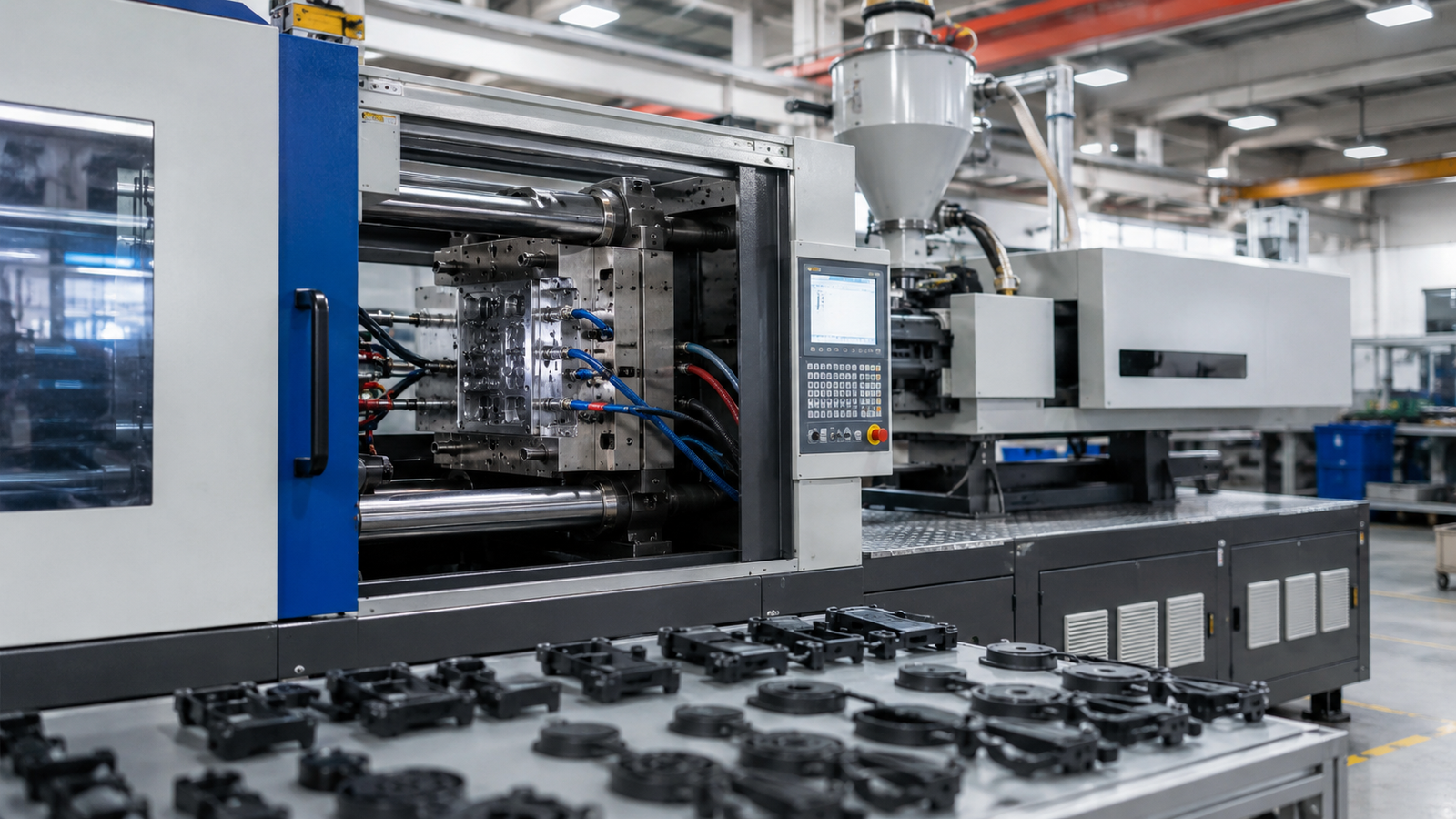

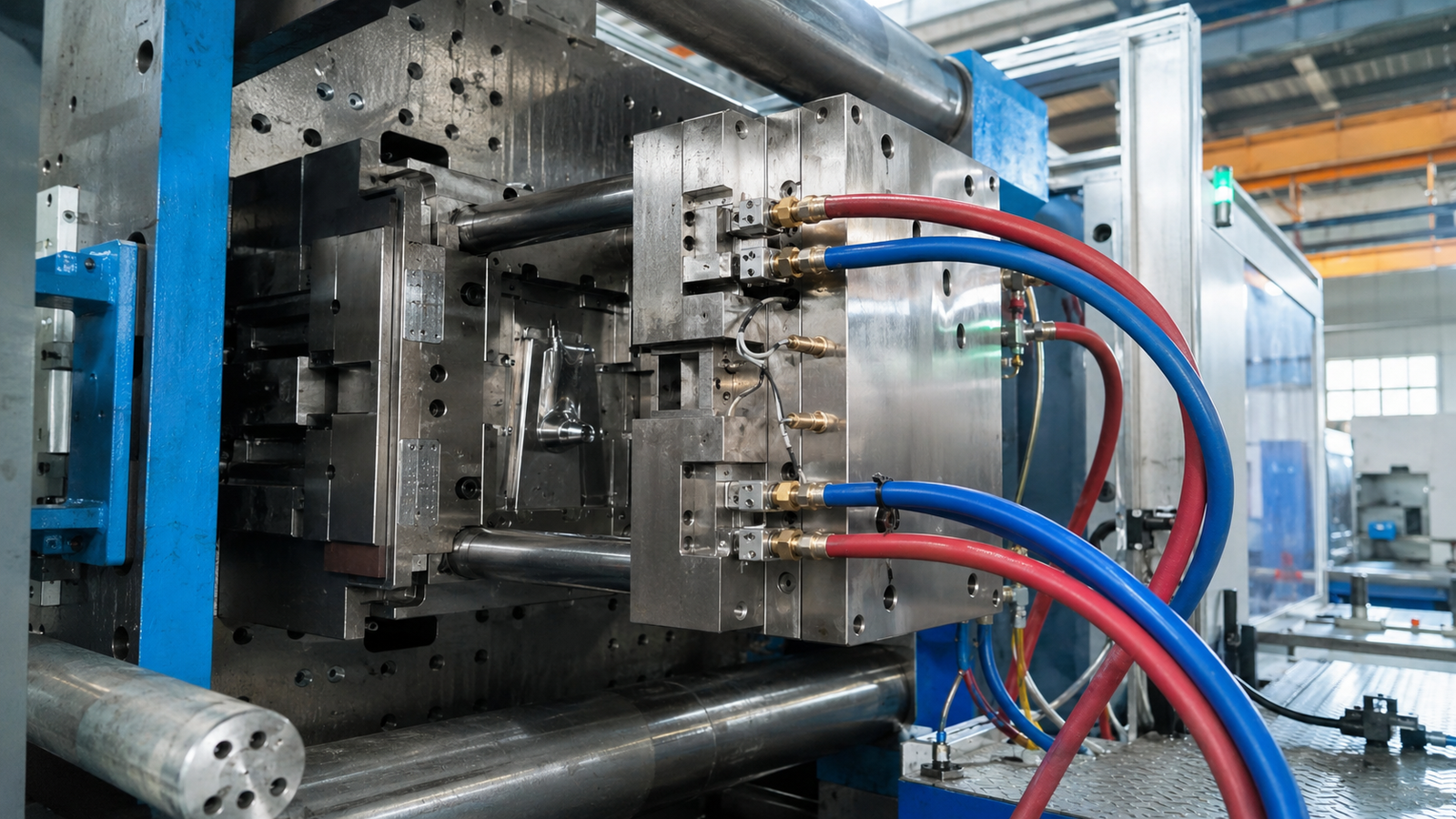

| Injection Molding Cooling | High | Mold cooling, hydraulic oil cooling, auxiliary loop, medium heat load | Review machine size, mold heat load, flow rate, and duty cycle. |

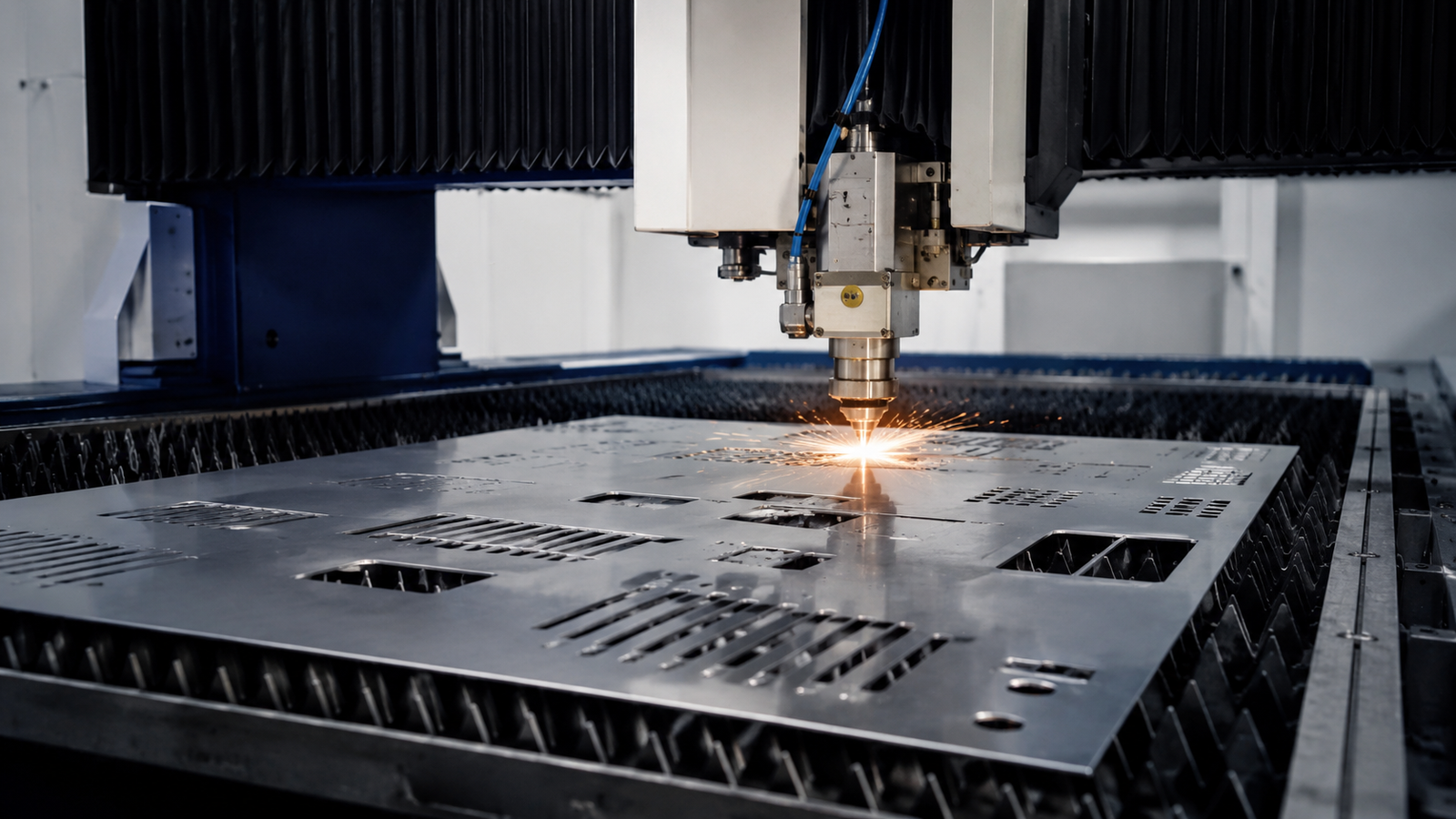

| Laser Equipment Cooling | High | Laser source, optics, power supply, cutting or welding process cooling | Review cooling capacity, temperature stability, alarm interface, and flow. |

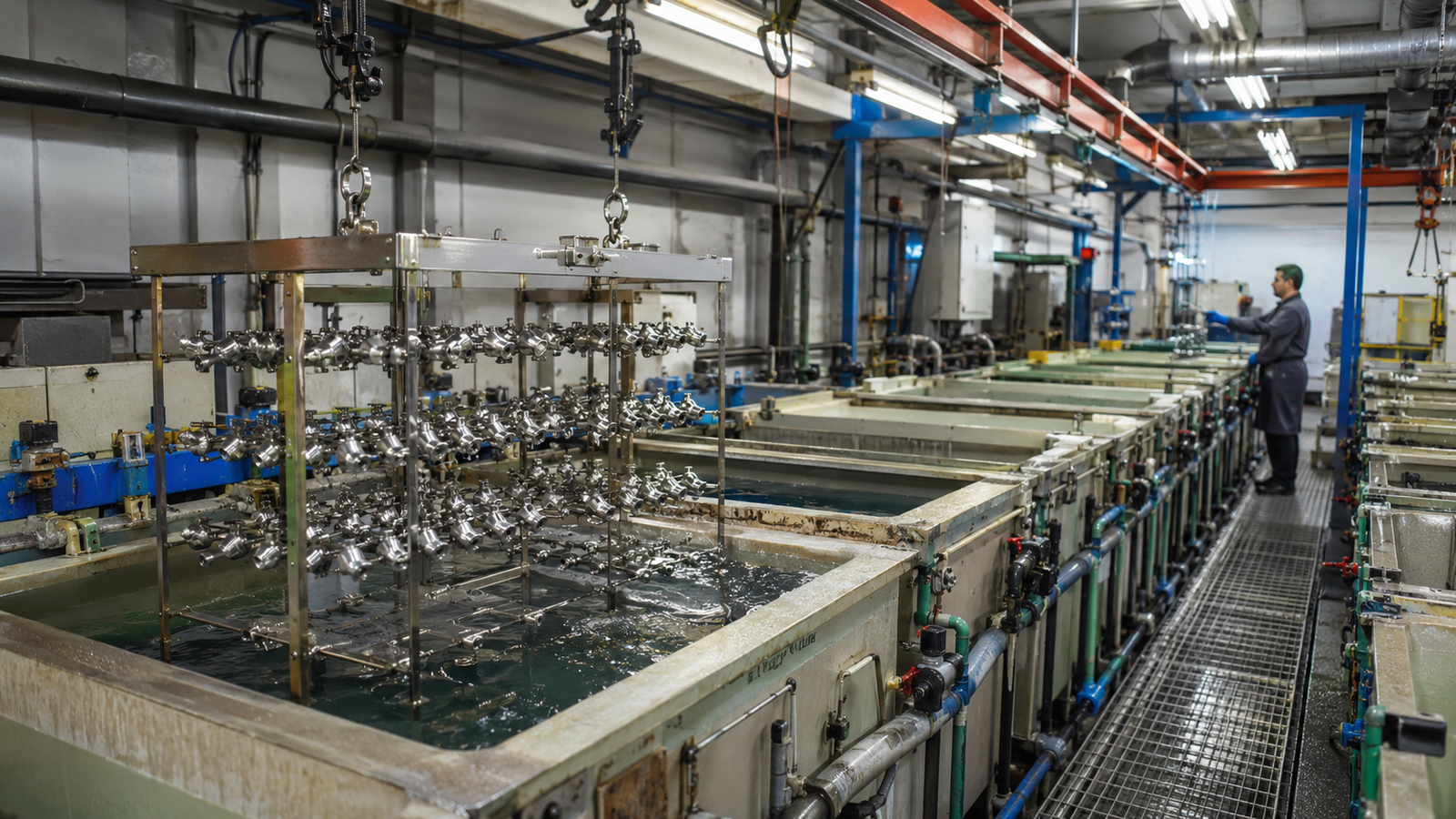

| Electroplating Bath Cooling | Medium to High | Plating bath or anodizing bath temperature control | Review corrosion risk, water quality, heat exchanger material, and secondary loop. |

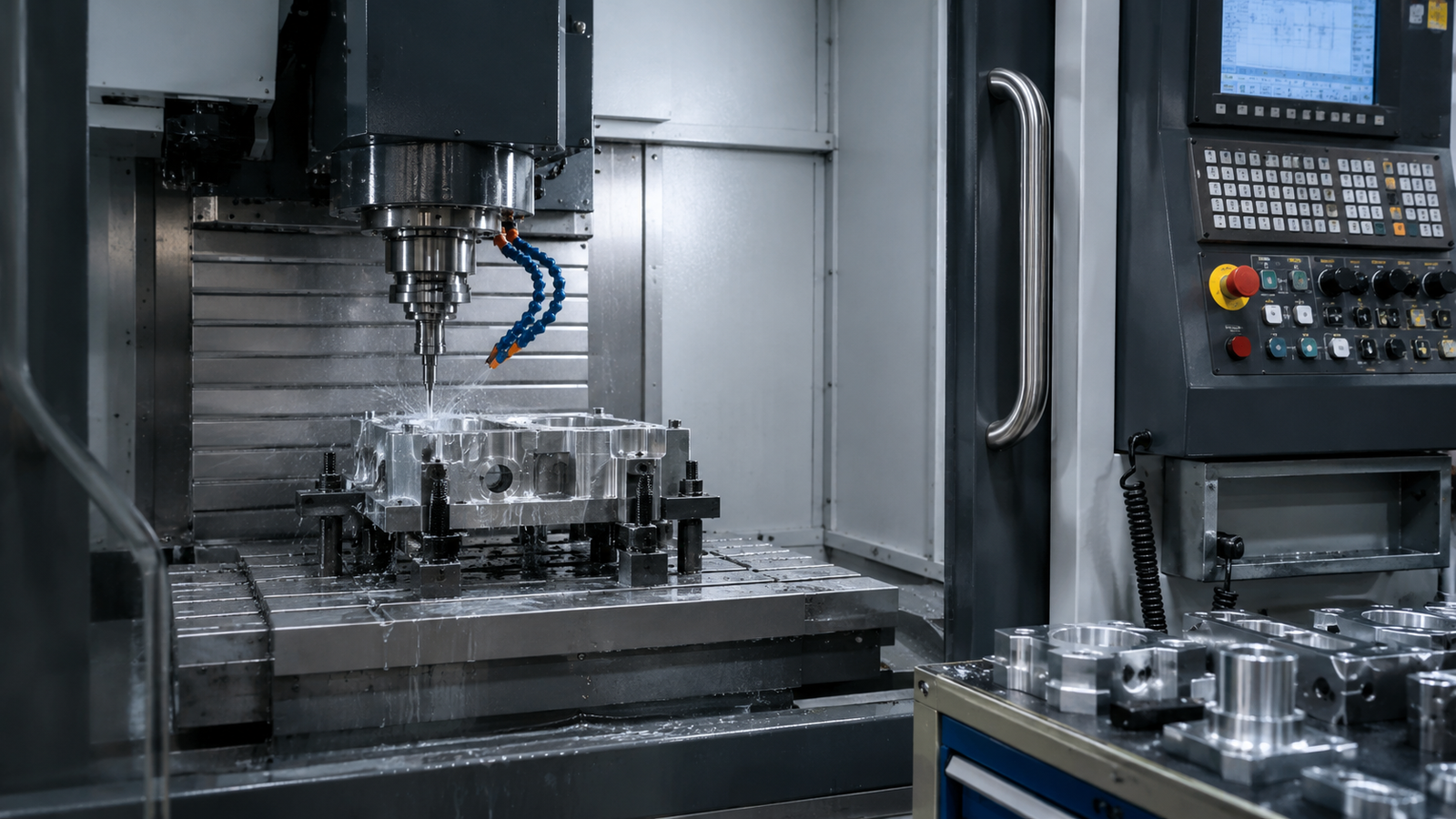

| CNC Machine Tool Cooling | High | Spindle, cutting fluid, machine tool, or compact workshop process cooling | Review pipe length, pump pressure, flow, and coolant quality. |

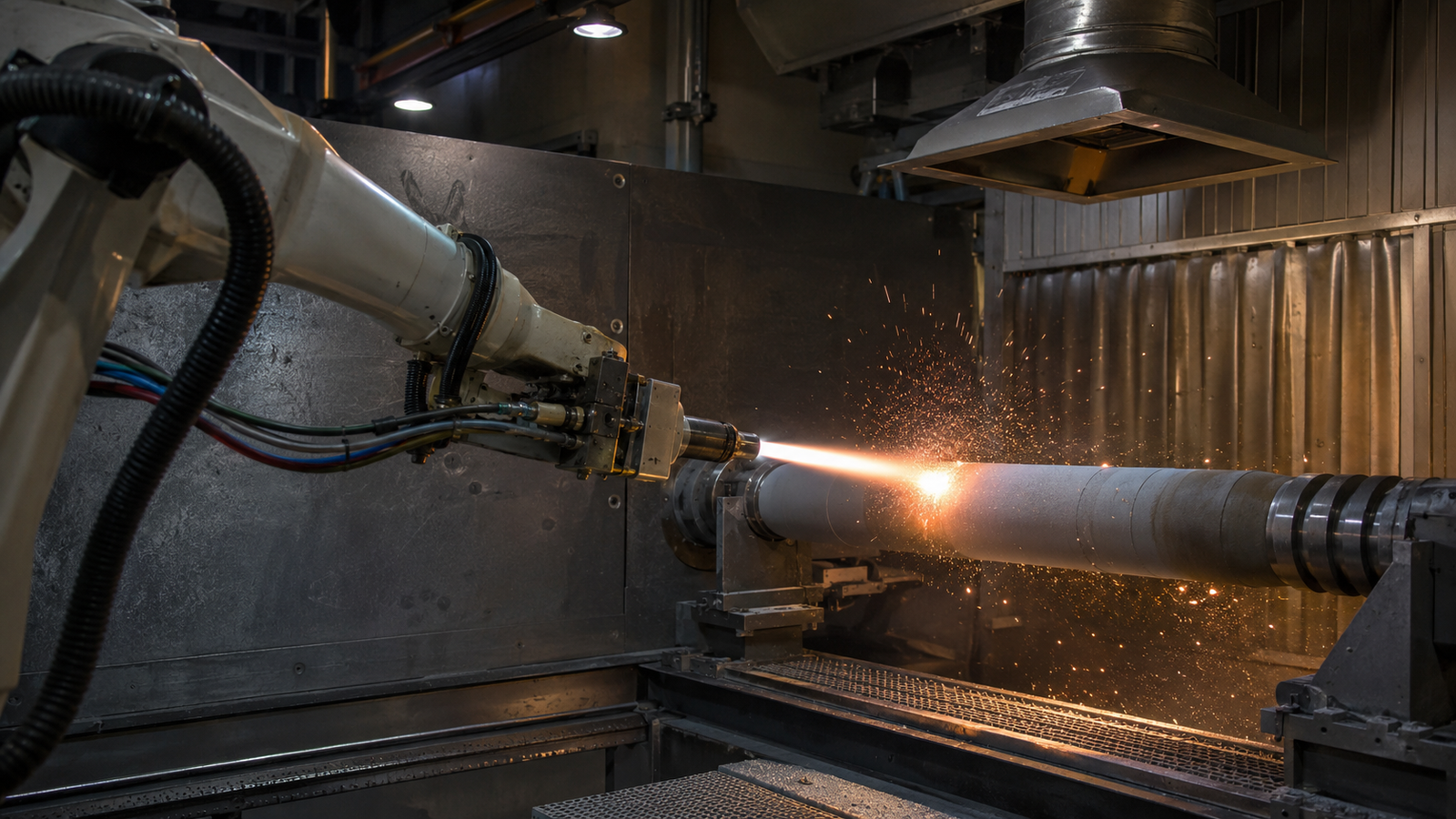

| Thermal Spray Auxiliary Cooling | Medium | Power supply, auxiliary loop, supporting equipment, or medium process water load | Review whether the main spray gun or torch requires larger or custom cooling. |
| Factory Equipment Process Cooling | High | Single machine, process tank, test system, or production equipment cooling | Review heat load, operating schedule, plant ventilation, and voltage. |
Suitable vs Not Suitable Conditions
Suitable For
- Medium heat load
- Single production machine cooling
- Small to medium process tank cooling
- No cooling tower preferred
- Factory equipment cooling
- Higher duty cycle than compact chillers
- Pump and tank customization required
- Indoor or ventilated workshop installation
Not Recommended For
- Very small lab-only loads below compact range
- Large central cooling system above 20 HP
- Poor condenser ventilation
- Very high ambient without T3 or high ambient review
- Corrosive liquid without heat exchanger material review
- Explosion-proof requirement without custom safety review
- Large water-cooled efficiency requirement
5–20 HP Air-Cooled Chiller Engineering Options
APT can configure industrial air-cooled chillers according to process heat load, pump requirements, site voltage, installation conditions, and application needs.
Custom Voltage
Voltage, phase, and frequency can be reviewed according to country and site electrical standards.
Custom Pump Flow and Pressure
Pump selection can be matched to pipe distance, filters, process equipment, and pressure loss.
Built-In Tank Volume
Tank size can be adjusted according to process stability, water volume, and temperature control needs.
Evaporator / Heat Exchanger Selection
Plate, coil, or shell-and-tube options can be reviewed according to water quality and maintenance needs.
Stainless or Corrosion-Resistant Water Circuit
Stainless or corrosion-resistant options can be considered for clean water, plating, or chemical-related processes.
Glycol or Special Fluid Review
Glycol concentration and special fluids require temperature, pump, and material compatibility review.
PLC / Remote Alarm / Communication
Alarm output, communication interface, and PLC options can be reviewed for factory automation.
Outdoor or High Ambient Review
Outdoor installation and high ambient conditions require condenser and protection logic review.
T3 High Ambient Configuration Review
Hot-climate projects may require T3 or high ambient design direction.
OEM Cabinet / Service Layout
Cabinet dimensions, water connections, access panels, and service layout can be reviewed by project.
Quote Information Checklist
To recommend a suitable 5–20 HP industrial air-cooled chiller, APT engineers need actual process conditions rather than horsepower only.
- Application
- Required cooling capacity or heat load
- Current equipment power or heat source
- Target outlet temperature
- Inlet temperature
- Flow rate and pump pressure
- Coolant type and water quality
- Ambient temperature
- Voltage / phase / frequency
- Installation space and ventilation
- Pipe distance and height difference
- Tank volume if required
- Control or alarm requirement
- Photos, drawings, existing chiller data
Related Air-Cooled Product Pages
Air-Cooled Chillers
Return to the complete APT air-cooled industrial chiller product category and selection matrix.
View Air-Cooled Chillers → Compact Range1–5 HP Compact Air-Cooled Chillers
Compare smaller compact chillers for point-of-use cooling, ice bath, CNC, lab, and OEM systems.
View Compact Chillers → Large Range20–50 HP Large Air-Cooled Chillers
Review larger-capacity air-cooled chillers for continuous industrial operation.

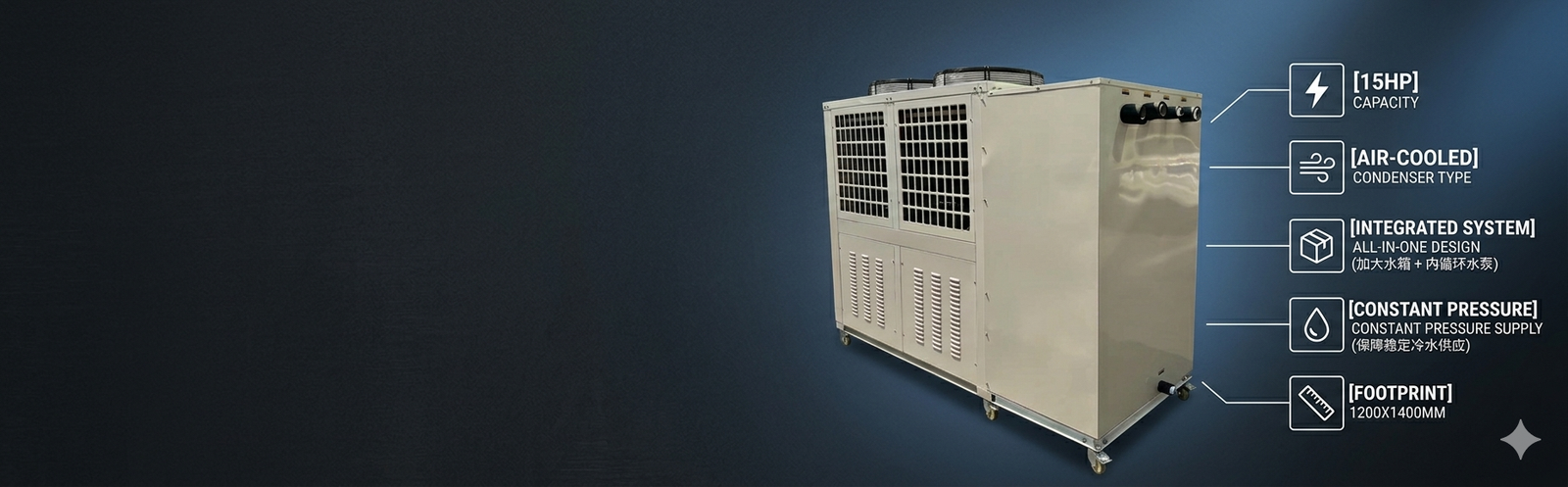

View 20–50 HP → CustomCustom Chiller Solutions
Request project-specific cooling capacity, voltage, pump, tank, or layout configuration.
View Custom Solutions →Related Application Pages
Injection Molding Cooling
Industrial cooling for molds, hydraulic oil, machine auxiliary loops, and plastics processing equipment.
View Injection Cooling → ApplicationLaser Cooling
Process cooling for laser sources, optics, power supplies, welding heads, and cutting systems.
View Laser Cooling → ApplicationElectroplating Cooling
Bath temperature control for plating, anodizing, and surface treatment processes.
View Plating Cooling → ApplicationCNC Machine Tool Cooling
Cooling for spindle, cutting fluid, machine tools, and precision machining support.
View CNC Cooling → ApplicationThermal Spray Cooling System
Auxiliary water cooling for spray equipment, power supplies, and supporting process loops.
View Thermal Spray Cooling → ApplicationDie Casting Cooling
Cooling support for molds, hydraulic systems, production equipment, and foundry process water.
View Die Casting Cooling →Related Resource Pages
Chiller Selection Guides
Understand capacity, temperature, flow, pump pressure, and selection logic before quotation.
View Guides → InsightsEngineering Insights
Read engineering articles about industrial chiller selection, maintenance, and custom cooling projects.
Read Insights → FAQFAQ Center
Find answers to industrial chiller selection, quotation, installation, and maintenance questions.
View FAQ → DownloadsTechnical Downloads
Access catalogs, datasheets, checklists, and application PDFs for project review.
View Downloads → ToolChiller Selection Tool
Organize cooling load, temperature, flow, pump pressure, voltage, and application data.
Use Tool →5–20 HP Industrial Air-Cooled Chiller FAQ
What is a 5–20 HP industrial air-cooled chiller used for?
It is used for medium-capacity process cooling applications such as injection molding, laser equipment, electroplating, CNC machines, thermal spray auxiliary cooling, process tanks, factory equipment, and industrial water cooling systems.
How do I choose between 5 HP, 10 HP, 15 HP, and 20 HP?
Selection depends on heat load, target outlet temperature, process water flow, pump pressure, tank volume, ambient temperature, operating hours, and required cooling margin.
When should I choose a 5–20 HP chiller instead of a 1–5 HP compact chiller?
A 5–20 HP air-cooled chiller is recommended when the heat load, duty cycle, flow rate, tank volume, or industrial operation requirement exceeds the practical range of compact chillers.
Can this series be used for injection molding cooling?
Yes. 5–20 HP air-cooled chillers are commonly used for small and medium injection molding machines, mold cooling, hydraulic oil cooling, and auxiliary process cooling when the heat load is suitable.
Can this series be used for electroplating or chemical process cooling?
Yes, but electroplating or chemical process cooling requires water quality, corrosion risk, heat exchanger material, pump, tank, and secondary loop review before final selection.
Does a 5–20 HP air-cooled chiller need a cooling tower?
No. An air-cooled chiller rejects heat to ambient air through the condenser and fans, so it does not require a cooling tower. Proper ventilation and service clearance are still required.
What pump flow and pressure should be confirmed?
Pump flow and pressure should be reviewed according to equipment heat exchanger resistance, pipe distance, height difference, filters, tank size, and process circulation requirements.
Can APT customize voltage, pump, tank, and controls?
Yes. APT can customize voltage, frequency, pump flow, pump pressure, water tank, control panel, alarm output, cabinet layout, and other project-specific configurations.
When should I consider a water-cooled chiller instead?
A water-cooled chiller may be considered when the project has larger heat load, stable cooling tower or condenser water, indoor heat rejection limits, or continuous-duty efficiency requirements.
What information is needed for a 5–20 HP air-cooled chiller quotation?
Please provide application, heat load or equipment power, target temperature, flow rate, pump pressure, coolant type, voltage, ambient temperature, installation space, operating schedule, and any customization requirements.
Need a 5–20 HP Air-Cooled Chiller Recommendation?
Share your application, heat load, target temperature, process flow, pump pressure, coolant type, voltage, ambient temperature, and installation conditions. APT engineers can review your medium-capacity process cooling project and recommend a suitable 5 HP, 10 HP, 15 HP, or 20 HP air-cooled industrial chiller configuration.
